46PPI 700cd/M2 Square LCD Panel 47.0" 1920×1080 LD470EUP-SEA1 89/89/89/89 (Typ.)(CR≥10)
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG Display
Product Description
LG Display LD470EUP-SEA1 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LD470EUP-SEA1 | a-Si TFT-LCD , LCM | LD470EUP (SE)(A1) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
LG Display LD470EUP-SEA1 Mechanical Features
| Panel Size : | 47 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.1805×0.5415 mm | 0.5415×0.5415 mm [46PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 1039.68×584.82 mm | 1048.8×593.0 mm | 1068.8×612.8 mm | 20.8/30.5 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape / Portrait | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 10.9/11.5Kgs (Typ./Max.) | Antiglare (Haze 10%), Hard coating (3H) | ||
LG Display LD470EUP-SEA1 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 700 cd/m² (Typ.) | S-IPS, Normally Black, Transmissive | 1500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Min.)(CR≥10) | Symmetry | 12 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 9972K | 16.7M/1.06B (8-bit / 8-bit + Dithering) | X:0.279; Y:0.292 | |
| Luminance Variation : | 1.30 (Max.)(5 points) | ||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | ||
LG Display LD470EUP-SEA1 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 670/871mA (Typ./Max.) | 12.0V (Typ.) | 8.0/10.4W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (4 ch, 8/10-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-RE51S-HF | 1 pcs | 0.5 mm | 51 pins | ||
| JAE | FI-RE41S-HF | 1 pcs | 0.5 mm | 41 pins | ||
LG Display LD470EUP-SEA1 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 50K(Typ.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | With LED Driver | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| YEONHO | 20022WR-H14B2 | 1 pcs | 2.0 mm | 14 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 3.85A (Typ.) | 24.0±1.2V | 92.4W (Typ.) | ||||

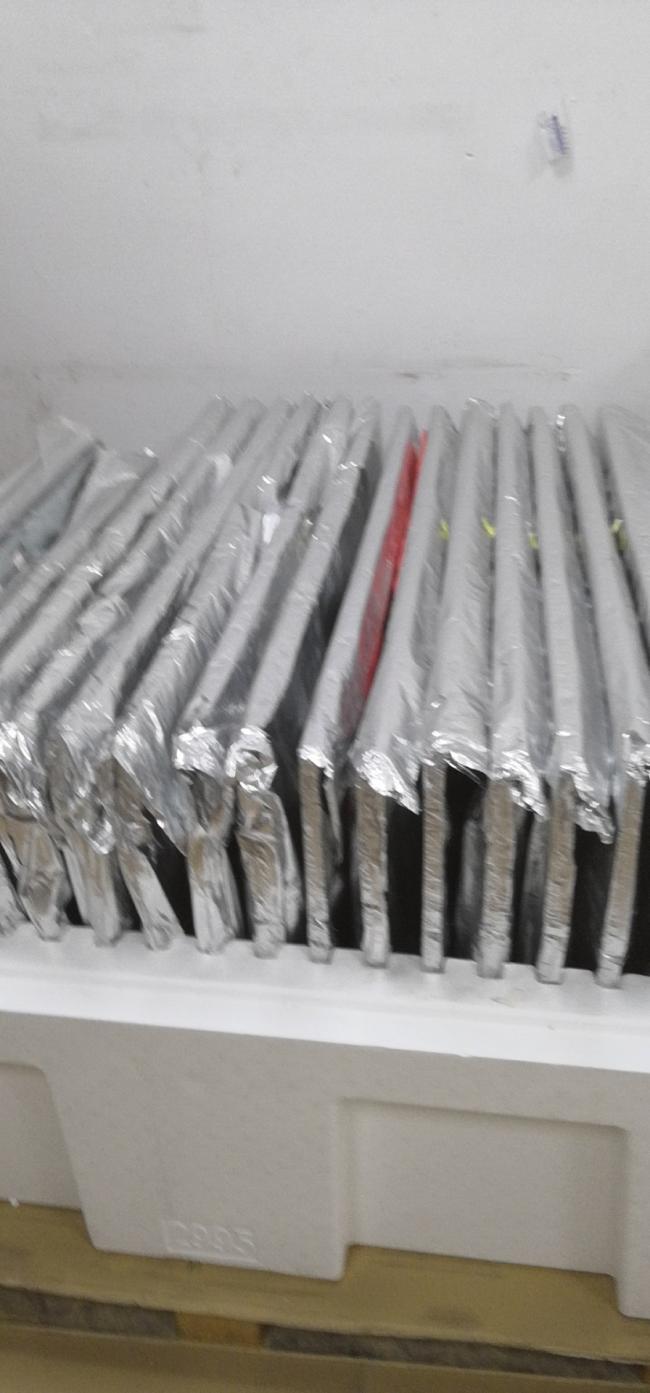

LG Display LD470EUP-SEA1 Packing Features
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 18 pcs / box | - | 1300×1140×848.5 mm (L×W×H) |
