24.0in 400cd/m2 94PPI Lcd Video Panel 1920x1200 LM240WU3-TLD1
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG Display
Product Description
LG Display LM240WU3-TLD1 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LM240WU3-TLD1 | a-Si TFT-LCD , LCM | LM240WU3 (TL)(D1) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
LG Display LM240WU3-TLD1 Mechanical Features
| Screen Size : | 24.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×1200, WUXGA | RGB Vertical Stripe | 0.090×0.270 mm | 0.270×0.270 mm [94PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 518.4×324 mm | 522.4×328.0 mm | 546.4×352 mm | 35.7 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:10 | Landscape type | Normal bezel | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 2.48/2.60Kgs (Typ./Max.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Side mounting holes | |||
LG Display LM240WU3-TLD1 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 85/85/75/85 (Typ.)(CR≥10) | 5 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 93% | 100% | 94% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 87% | 70% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.33 (Max.)(9 points) | ||
LG Display LM240WU3-TLD1 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Direct light type | 40K(Min.) | 6 pcs | U shape | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 1750±200V | 3.0/6.0/8.0mA (Min./Typ./Max.) | 35.1/63/74.4W (Min./Typ./Max.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 40/48/80KHz (Min./Typ./Max.) | 2500/2900V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| YEONHO | 20015HS-04L | 6 pcs | 4 pins | 4.0 mm | BLL-4PINS-HNNH | |
LG Display LM240WU3-TLD1 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 860±130mA | 4.30/5.45W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| P-TWO | 187024-30091 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160C | |

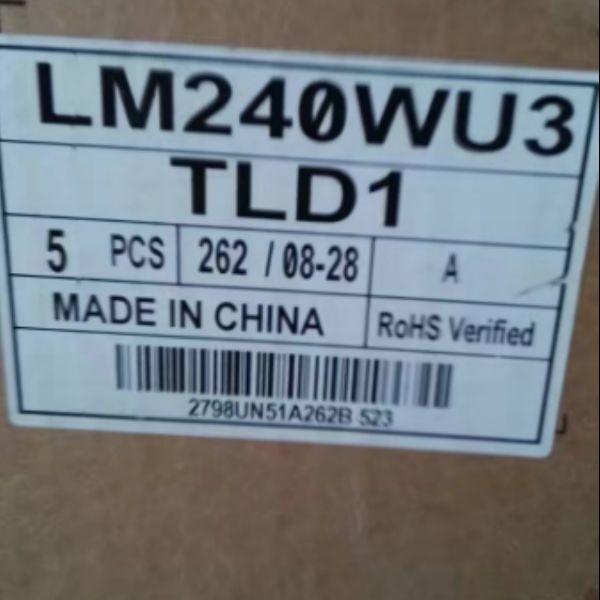

LG Display LM240WU3-TLD1 Packing Features
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 5 pcs / box | - | 436×346×628 mm (L×W×H) |
