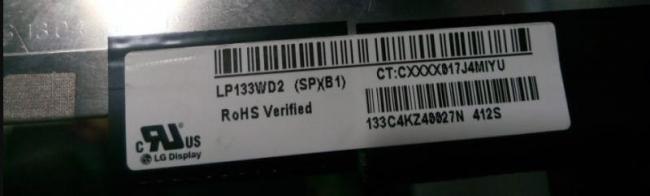

LP133WD2-SPB1 LG Display 13.3" 1600×900 300 cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: LG Display
Product Description

LG Display LP133WD2-SPB1 Application Details

Basic Detail :
Manufacturer

LP133WD2-SPB1Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
LP133WD2 (SP)(B1), LGD0413
Panel Size
13.3 inch
Designed For
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C



LG Display LP133WD2-SPB1 Optical Details

Basic Detail :
Luminance
300 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
35 (Typ.)(Tr+Td); 25 (Typ.)(G to G) ms
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
262K (6-bit)
Color Temperature
6485K
White Variation
1.40/1.60 (Typ./Max.)(13 points)
1931 Color Gamlt :
NTSC Ratio
48%
sRGB
66% coverage
Adobe RGB
50% coverage
DCI-P3
49% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LP133WD2-SPB1 Mechanical Details

Pixel Features :
Number of Pixel
1600(RGB)×900, HD+
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0612×0.1836 mm
Pixel Pitch(W×H)
0.1836×0.1836 mm [138PPI]
Physical Size :
Active Viewing
293.76(W)×165.24(H) mm
Overall Dim.
306.3(W)×188.7(H) mm
Bezel Opening
297.4(W)×169.3(H) mm
Overall Depth
2.7/2.85 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Fixation :
Without
Other Detail :
Mass
220/230g (Typ./Max.)
Surface
Antiglare, Hard coating (3H)



LG Display LP133WD2-SPB1 Interface Detail

Signal Electrical :
Input Current
468/538mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
1.77/2.03W (Typ./Max.)
Signal Interface
eDP (1 Lane)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
I-PEX
20455-030E-02
0.5 mm
30 pins
1 pcs
EDP-30P1L-030A



LG Display LP133WD2-SPB1 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
12K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
7.0/12.0/21.0V (Min./Typ./Max.)
Input Current
242/278mA (Typ./Max.)
Consumption
2.9/3.34W (Typ./Max.)



LG Display LP133WD2-SPB1 Packing Details

Package Box : Amount Size (L×W×H) Weight
20 pcs / box - 478×365×244 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
