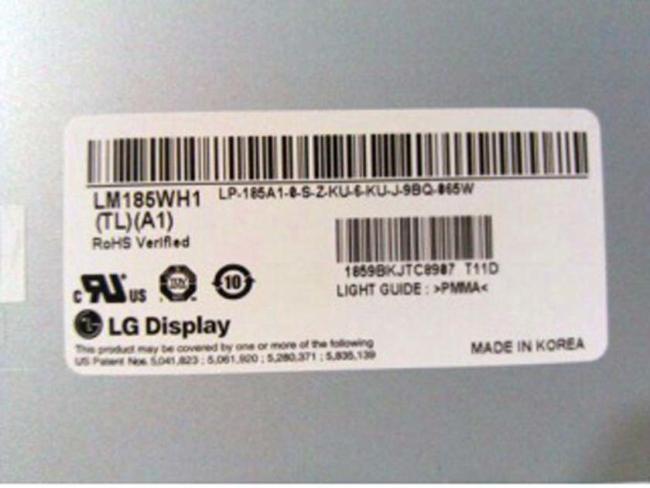

LM185WH1-TLA1 LG Display 18.5" 1366×768 300cd/m2 INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG Display
Product Description
LG Display LM185WH1-TLA1 Application Details
| Basic Info : | Panel Brand | Panel Model | LM185WH1-TLA1 | |
|---|---|---|---|---|
| Diagonal Size | 18.5" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LM185WH1 (TL)(A1) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
LG Display LM185WH1-TLA1 Mechanical Details
| Pixel Features : | Pixel Format | 1366(RGB)×768 [WXGA] | Dot Pitch | 0.100×0.300 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.300×0.300 mm (H×V) [84PPI] | |
| Mechanical Size : | Display Area | 409.8×230.4 mm (H×V) | Bezel Area | 413.4×234.0 mm (H×V) |
| Outline Dim. | 430.4×254.6 mm (H×V) | Outline Depth | 13.5 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Normal bezel | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.55Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
LG Display LM185WH1-TLA1 Optical Details
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/75/85 (Typ.)(CR＞10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 1.1/3.9 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 96% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LM185WH1-TLA1 Backlight Details
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 2 pcs | Position | Edge light type (Top and Bottom) | |
| Lamp Electrical : | Voltage Input | 685/700/860V (Min./Typ./Max.) | Current Input | 3.0/7.5/8.0mA (Min./Typ./Max.) | ||
| Frequency | 40/60/70KHz (Min./Typ./Max.) | Kick-off Voltage | 1550V (Max.)(Ta=0℃) | |||
| Consumption | 10.50/10.96W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | 35001HS-02LD | 3.5 mm | 2 pins | 2 pcs | BLL-2PINS-HL | |
LG Display LM185WH1-TLA1 Interface Details
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 0.72/0.83A (Typ./Max.) | ||
| Consumption | 3.10/3.58W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| UJU | IS100-L30B-C23 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160C | |
LG Display LM185WH1-TLA1 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 10 pcs / box | - | 540×312×315 mm |
