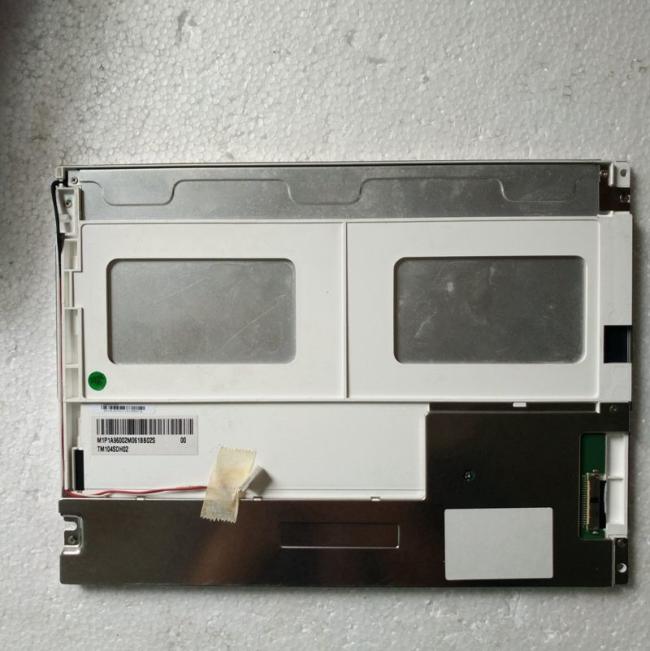

LP101WX1-SLP2 LG Display 10.1" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG DISPLAY
Product Description
LG Display LP101WX1-SLP2 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LP101WX1-SLP2 | a-Si TFT-LCD , LCM | LP101WX1 (SL)(P2) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
LG Display LP101WX1-SLP2 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 80/80/80/80 (Min.)(CR≥10) | 35 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 500 : 1 (Min.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 68% | 51% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 51% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.40/1.60 (Typ./Max.)(13 points) | ||
LG Display LP101WX1-SLP2 Mechanical Features
| Panel Size : | 10.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1280(RGB)×800 [WXGA] | RGB Vertical Stripe | 0.1695×0.1695 [149PPI] | 0.0565×0.1695 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 216.96(H) × 135.6(V) | 221.6(H) × 140.3(V) | 229.46(H) × 149.2(V) | 3.35/5.2 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:10 (H:V) | ||
| Mounting : | Face mounting holes (5 pcs) on left right, up slugs | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 160g (Max.) | - | Antiglare | ||
LG Display LP101WX1-SLP2 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 12K(Min.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in panel signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 7.0/12.0/21.0V (Min./Typ./Max.) | 217.0/223.0mA (Typ./Max.) | 2.60/2.67W (Typ./Max.) | ||||
LG Display LP101WX1-SLP2 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 303/348mA (Typ./Max.) | 1.15W (Typ.) | ||||
| Interface Features : | Position | Signal | Type | |||
| LVDS (1 ch, 6-bit) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| UJU | IS050-L40B-C10 | 0.5 mm | 40 pins | 1 pcs | LVDS-40P1C6B-060B | |
LG Display LP101WX1-SLP2 Packing Features
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 30 pcs / box | - | 355×468×266 mm (L×W×H) |
