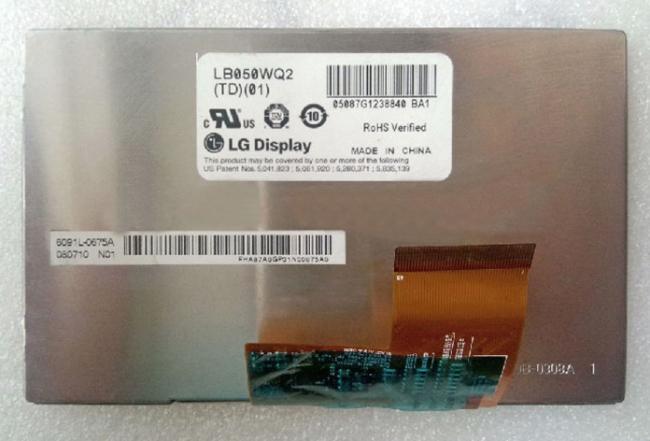

LB050WQ2-TD03 LG. LCD 5.0" 480×272(RGB) 400 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG. LCD
Product Description
LG. LCD LB050WQ2-TD03 Application Details
| Basic Info : | Panel Brand | Panel Model | LB050WQ2-TD03 | |
|---|---|---|---|---|
| Diagonal Size | 5.0" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LB050WQ2 (TD)(03) | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | 1.0G (9.8 m/s²) |
LG. LCD LB050WQ2-TD03 Mechanical Details
| Pixel Features : | Pixel Format | 480×272(RGB) [WQVGA] | Dot Pitch | 0.2307×0.0765 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Horizontal Stripe | Pixel Pitch | 0.2307×0.2295 mm (H×V) [110PPI] | |
| Mechanical Size : | Display Area | 110.736×62.424 mm (H×V) | Bezel Area | 113.72×65.4 mm (H×V) |
| Outline Dim. | 124×77.2 mm (H×V) | Outline Depth | 4.5±0.2 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Touch Screen : | Touch Points | - | TP Signal | - |
| TP Controller | - | Touchscreen | 4-wire Resistive Touch, F/G | |
| Other Features : | Weight | 89.0g (Typ.) | Surface | Antiglare |
LG. LCD LB050WQ2-TD03 Optical Details
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/50/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 25 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.326; Wy:0.366 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 5727K | White Uniformity | 1.40/1.60 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 46% | sRGB | 63% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 48% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG. LCD LB050WQ2-TD03 Backlight Details
| Back-light Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6S2P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | Current Input | 20mA (Typ.) | |||
| Consumption | 770 mW (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
LG. LCD LB050WQ2-TD03 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 8-bit) | Logic Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 2.5/3.3V (Typ.)(VDD) | Current Input | - | ||
| Consumption | 120/140mW (Typ./Max.) | |||||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 45 pins | 1 pcs | ||||
LG. LCD LB050WQ2-TD03 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 96 pcs / box | - | 475×348×175 mm |
