LB070WV8-SL01 LG Display 7.0" 800(RGB)×480 450 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG DISPLAY
Product Description
LG Display LB070WV8-SL01 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LB070WV8-SL01 | a-Si TFT-LCD , LCM | LB070WV8 (SL)(01) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -30 ~ 80 °C | -30 ~ 85 °C |
LG Display LB070WV8-SL01 Mechanical Features
| Panel Size : | 7.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0635×0.1905 mm | 0.1905×0.1905 mm [133PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 152.4×91.44 mm | 155.2×94.2 mm | 170×106.3 mm | 6.7/10.7 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 15:9 (W : H) | Landscape type | ||
| Fixation : | Rear mounting holes (4-M2) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 220g (Max.) | Antiglare | ||
LG Display LB070WV8-SL01 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Min.)(CR≥10) | Symmetry | 15/10 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6859K | 16.2M (6-bit + FRC) | X:0.305; Y:0.335 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 63% | 83% | 65% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 66% | 47% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25 (Max.)(9 points) | ||
LG Display LB070WV8-SL01 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 310/403mA (Typ./Max.) | 3.3V (Typ.) | 0.9/1.3W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-X30SSLA-HF | 1 pcs | 1.0 mm | 30 pins | ||
LG Display LB070WV8-SL01 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 30K(Min.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 210/280mA (Typ./Max.) | 11.0/12.0/12.5V (Min./Typ./Max.) | 2.5/3.5W (Typ./Max.) | ||||

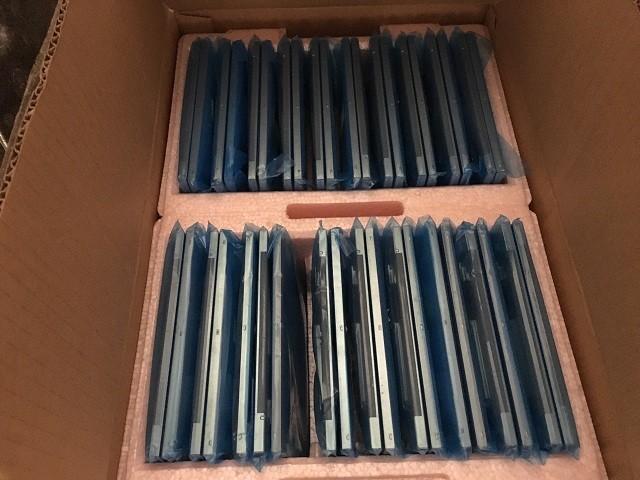

LG Display LB070WV8-SL01 Packing Features
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 54 pcs / box | - | 478×365×244 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
