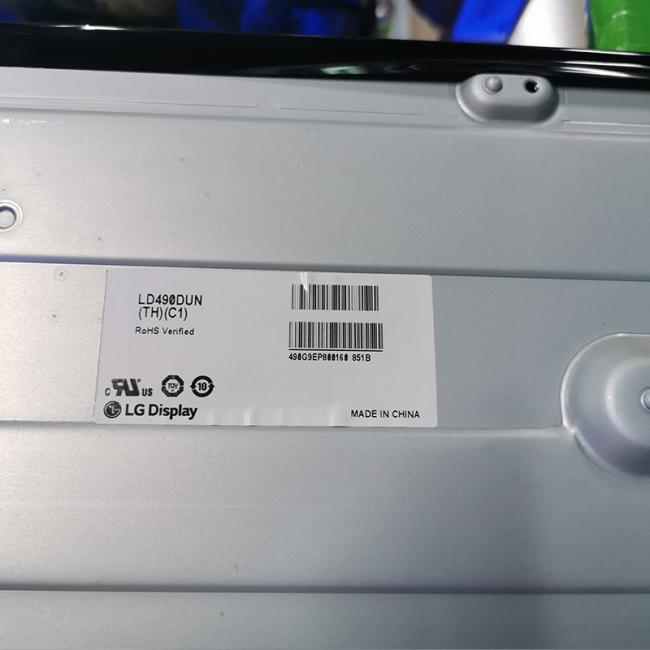

LD490DUN-THC1 LG Display 49" 1920(RGB)×1080 450 cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: LG DISPLAY
Product Description

LG Display LD490DUN-THC1 Application Details

Basic Information :
Brand

LD490DUN-THC1Model
Type
a-Si TFT-LCD , LCM
Used For

49 inchScreen Size
Alias
LD490DUN (TH)(C1)
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C



LG Display LD490DUN-THC1 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.18642×0.55926 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.55926×0.55926 (H×V) [45PPI]
Mechanical Size :
Active Area(mm)
1073.78(H) × 604(V)
Bezel Area(mm)
1074.1(H) × 604.3(V)
Outline Dim.(mm)
1077.6(H) × 607.8(V)
Depth(mm)
36.7/55.6 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Videowall Seam
3.8 mm (Active to Active)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape / Portrait
Mounting :
Side mounting holes, Rear mounting holes
Other Spec :
Weight
13.5/14.2Kgs (Typ./Max.)
Treatment
Antiglare (Haze 1%), Hard coating (3H)



LG Display LD490DUN-THC1 Optical Details

Basic Information :
Luminance(cd/m²)
450 (Typ.)
Contrast Ratio
1300:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
S-IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
8 (Typ.)(G to G)
Color Performance :
White Coordinate
Wx:0.279; Wy:0.292
Display Colors
16.7M/1.07B (8-bit / 8-bit + Dithering)
Color Temperature
9972K
White Uniformity
1.54 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
98% coverage
Adobe RGB
74% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LD490DUN-THC1 Interface Detail

Signal Electrical :
Voltage Supply
12.0V (Typ.)
Current Supply
530/690A (Typ./Max.)
Consumption
6.4/8.3W (Typ./Max.)
Signal Type :
LVDS (2 ch, 8/10-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JAE
FI-RE51S-HF
0.5 mm
51 pins
1 pcs






LG Display LD490DUN-THC1 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Direct light type
Replacement
-
Shape
-
Life Time
60K(Typ.) (Hours)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
YEONHO
20022WR-14B2
2.0 mm
14 pins
1 pcs

Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
24.0±2.4V
Current Supply
3.1A (Typ.)
Consumption
75.9W (Typ.)



LG Display LD490DUN-THC1 Packing Details

Package Box : Quantity Weight Box Size
12 pcs / box - 1300×1140×845 mm (L×W×H)
