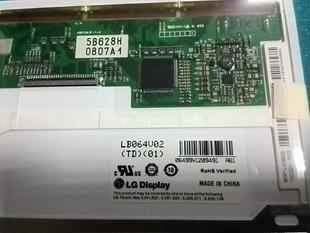

LB064V02-A1 LG. LCD 6.4" 640(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG. LCD
Product Description
LG. LCD LB064V02-A1 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LB064V02-A1 | a-Si TFT-LCD , LCM | LB064V02 (A1) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
LG. LCD LB064V02-A1 Mechanical Features
| Panel Size : | 6.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.068×0.204 mm | 0.204×0.204 mm [124PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 130.56×97.92 mm | 133.8×101.1 mm | 145.5×111.5 mm | 6.0±0.3 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M2) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 160/170g (Typ./Max.) | Antiglare (Haze 13%), Hard coating (3H) | ||
LG. LCD LB064V02-A1 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | TN, Normally White, Transmissive | 300:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 45/45/15/35 (Typ.)(CR≥10) | 6 o'clock | 15/30 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | 262K (6-bit) | - | |
| Luminance Variation : | 1.40/1.60 (Typ./Max.)(5 points) | ||
LG. LCD LB064V02-A1 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 160mA (Typ.)(ICC) | 3.3V (Typ.)(VCC) | 530mW (Typ.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | TTL (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| LS Mtron | GT101-30S-HR11 | 1 pcs | 1.0 mm | 30 pins | DRGB-30P1C6B-110A | |
LG. LCD LB064V02-A1 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Bottom side) | - | 1 pcs | 20K(Min.) | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 5.0mA (Typ.) | 355V (Typ.) | 1.78W (Typ.) | ||||
| Turn-on Voltage | Lamp Frequency | |||||
| 40/60/80KHz (Min./Typ./Max.) | ||||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHSR-02VS-1 | 1 pcs | 3.5 mm | 2 pins | BLL-2PINS-HL | |
LG. LCD LB064V02-A1 Packing Features
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 20 pcs / box | - | 325×271×197 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
