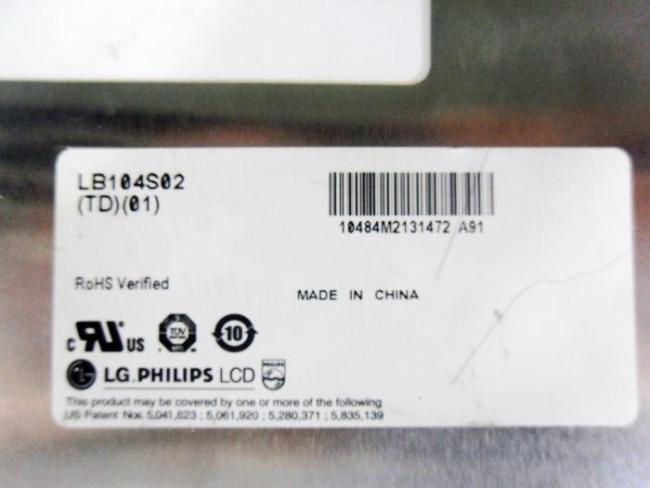

LB104S02-TD01 LG Display 10.4" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG DISPLAY
Product Description
LG Display LB104S02-TD01 Application Details
| Basic Information : | Brand | Model | LB104S02-TD01 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 10.4" | Alias | LB104S02 (TD)(01) | |
| Environment : | Storage Temp. | -20 ~~ 70 °C | Operating Temp. | -10 ~~ 60 °C |
LG Display LB104S02-TD01 Mechanical Details
| Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.088×0.264 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.264×0.264 (H×V) [96PPI] | |
| Mechanical Size : | Active Area(mm) | 211.2(H) × 158.4(V) | Bezel Area(mm) | 214.5(H) × 161.0(V) |
| Outline Dim.(mm) | 234.7(H) × 178.6(V) | Depth(mm) | 6.8±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 420/450g (Typ./Max.) | Treatment | Antiglare |
LG Display LB104S02-TD01 Optical Details
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/55/50 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 12 o'clock | Response(ms) | 6/19 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.300; Y:0.330 | Display Colors | 262K (6-bit) |
| Color Temperature | 7203K | White Uniformity | 1.25/1.40 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 55% | sRGB | 76% coverage |
| Adobe RGB | 58% coverage | DCI-P3 | 57% coverage | |
| Rec.2020 | 41% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LB104S02-TD01 Interface Details
| Signal Electrical : | Voltage Supply | 3.3/9.32/17.55/-4.99V (Typ.)(VCC/AVDD/VGH/VGL) | Current Supply | 5/38/0.80/0.32mA (Typ.)(ICC/IDD/IGH/IGL) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 2 pcs | 30 pins | 0.5 mm | ||||
LG Display LB104S02-TD01 Backlight Details
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1 pcs | Life Time | 20K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 800±80V | Current Supply | 6.0/6.5/7.0mA (Min./Typ./Max.) | ||
| Frequency | 40/60/80KHz (Min./Typ./Max.) | Startup Voltage | 1500/2200V (Max.)(Ta=+25/-10℃) | |||
| Consumption | 5.2/5.8W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHSR-02VS-1 | 1 pcs | 2 pins | 3.5 mm | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
LG Display LB104S02-TD01 Packing Details
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 20 pcs / box | - | 425×246×310 mm (L×W×H) |
