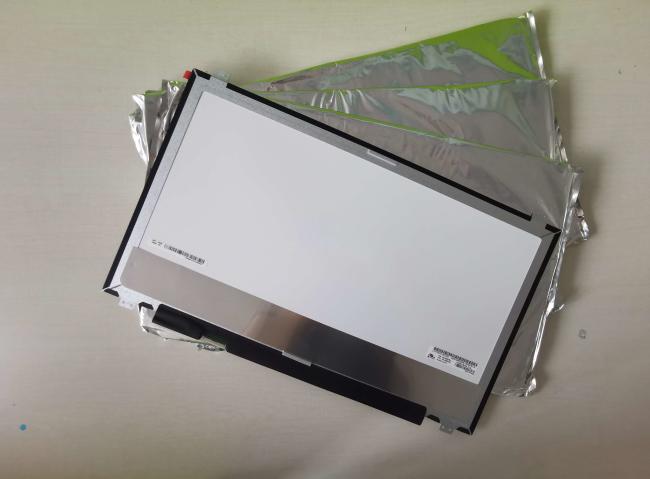

LP173WFG-SPD2 LG Display 17.3" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: LG DISPLAY
Product Description

LG Display LP173WFG-SPD2 Application Details

Basic Information :
Brand

LP173WFG-SPD2Model
Type
a-Si TFT-LCD , LCM
Used For





  •
  •
Screen Size
17.3 inch
Alias
LP173WFG (SP)(D2), LGD05E0
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C
RoHS

1.0G (9.8 m/s²)Vibration



LG Display LP173WFG-SPD2 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.0663×0.1989 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.1989×0.1989 (H×V) [127PPI]
Mechanical Size :
Active Area(mm)
381.888(H) × 214.812(V)
Bezel Area(mm)
-
Outline Dim.(mm)
398.09(H) × 250.51(V)
Depth(mm)
3.55/5.5 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Flat (PCBA Flat, T3.4~4.0mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (8 pcs) on up down slugs
Other Spec :
Weight
480g (Max.)
Treatment
Antiglare, Hard coating (3H)



LG Display LP173WFG-SPD2 Optical Details

Basic Information :
Luminance(cd/m²)
300 (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
5 (Typ.)(G to G)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (8-bit)
Color Temperature
6485K
White Uniformity
1.40/1.60 (Max.)(5/13 points)
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
99% coverage
Adobe RGB
74% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LP173WFG-SPD2 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
582/667mA (Typ./Max.)
Consumption
1.92/2.2W (Typ./Max.)
Signal Type :
eDP (4 Lanes), eDP1.3
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JAE
HD1S040HA2
0.5 mm
40 pins
1 pcs




LG Display LP173WFG-SPD2 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
12K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
7/12/21V (Min./Typ./Max.)
Current Supply
392/400mA (Typ./Max.)
Consumption
4.7/4.8W (Typ./Max.)



LG Display LP173WFG-SPD2 Packing Details

Package Box : Quantity Weight Box Size
20 pcs / box - 478×365×328 mm (L×W×H)







FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
