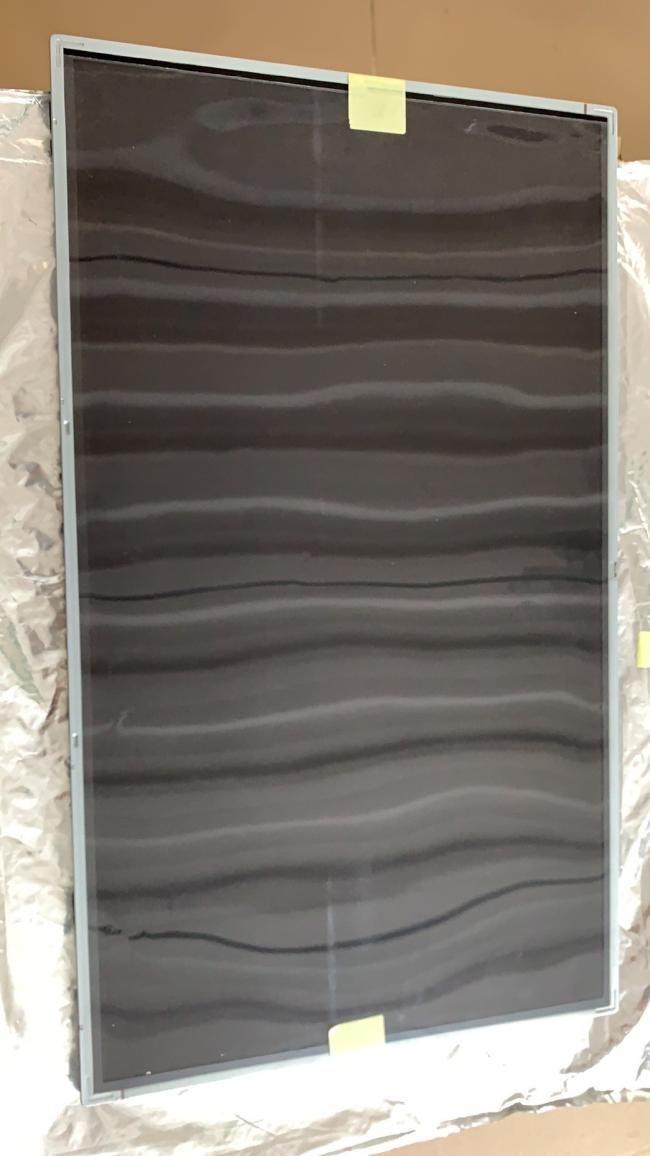

LM315WR1-SSB2 LG Display 32.0" 3840(RGB)×2160 400 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG DISPLAY
Product Description
LG Display LM315WR1-SSB2 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LM315WR1-SSB2 | a-Si TFT-LCD , LCM | LM315WR1 (SS)(B2) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
LG Display LM315WR1-SSB2 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 1300 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 1.07B (8-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 93% | 100% | 84% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 94% | 69% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33 (Max.)(9 points) | ||
LG Display LM315WR1-SSB2 Mechanical Features
| Panel Size : | 32.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 3840(RGB)×2160 [UHD] | RGB Vertical Stripe | 0.18159×0.18159 [139PPI] | 0.06053×0.18159 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 697.31(H) × 392.23(V) | - | 709.4(H) × 405.85(V) | 9.60/13.6 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | 4-side borderless | |
| Mounting : | Rear mounting holes (13-M3) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 3.19/3.35Kgs (Typ./Max.) | - | Antiglare, Hard coating (3H) | ||
LG Display LM315WR1-SSB2 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 11S4P×2CN | 4 strings × 2CN | 30K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 32.2±2.2V | 110/115mA (Typ./Max.) | 28.4/30.3W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| No | Connector | |||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BM06B-SHJS-TB(HF) | 1.0 mm | 6 pins | 2 pcs | BLE-6PINS-CCAACC | |
LG Display LM315WR1-SSB2 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 10.0V (Typ.) | 0.85/1.06A (Typ./Max.) | 8.5/10.6W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| eDP (4 Lanes) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| LS Mtron | GT05Q-30S-H10-MN | 0.5 mm | 30 pins | 1 pcs | EDP-30P4L-031A | |
LG Display LM315WR1-SSB2 Packing Features
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 8 pcs / box | - | 814×358×509 mm (L×W×H) |
