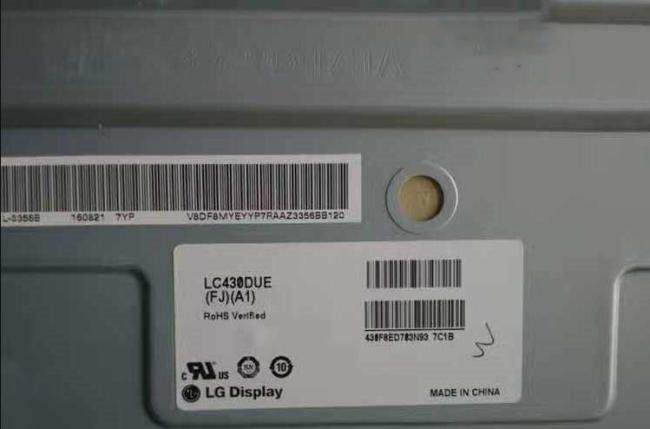

LC430DUE-FJA1 LG Display 43" 1920(RGB)×1080 200 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG DISPLAY
Product Description
LG Display LC430DUE-FJA1 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LC430DUE-FJA1 | a-Si TFT-LCD , LCM | LC430DUE (FJ)(A1) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
LG Display LC430DUE-FJA1 Mechanical Features
| Panel Size : | 43 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.1634×0.4902 mm | 0.4902×0.4902 mm [51PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 941.184×529.416 mm | 945.18×533.42 mm | 975.5×582.2 mm | 41.0 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 5.70/6.30Kgs (Typ./Max.) | Antiglare (Haze 3%), Hard coating (2H) | ||
LG Display LC430DUE-FJA1 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 200 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1100:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Min.)(CR≥10) | Symmetry | 6 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 9966K | 16.7M (8-bit) | X:0.281; Y:0.288 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 73% | 97% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.67 (Max.)(9 points) | ||
LG Display LC430DUE-FJA1 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 350/455mA (Typ./Max.) | 12.7V (Typ.) | 4.4/5.8W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (2 ch, 10-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-RXE51S-HF | 1 pcs | 0.5 mm | 51 pins | ||
LG Display LC430DUE-FJA1 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Direct light type | - | - | 30K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 400mA (Typ.) | 67.2/74.1V (Typ./Max.)(Typ./Max.) | 26.9/29.6W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| YW500-H02E | 1 pcs | 4 pins | BLE-7PINS-CNNA | |||
LG Display LC430DUE-FJA1 Packing Features
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 16 pcs / box | - | 1300×1140×757 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
