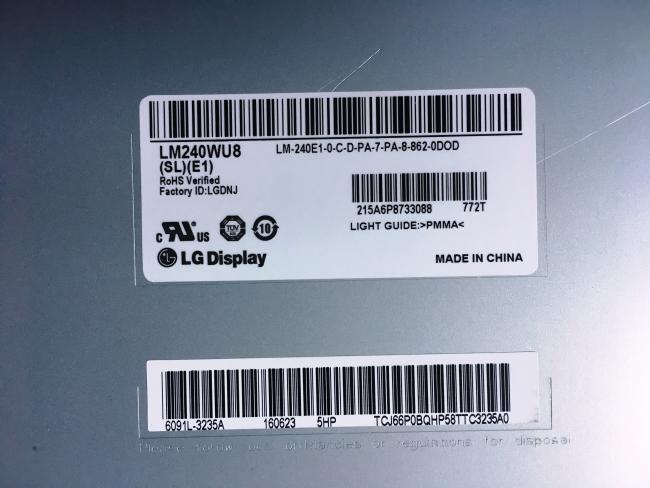

LM240WU8-SLD4 LG Display 24.0" 1920(RGB)×1200 250 cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: LG DISPLAY
Product Description

LG Display LM240WU8-SLD4 Application Details

Basic Information :
Brand

LM240WU8-SLD4Model
Type
a-Si TFT-LCD , LCM
Used For

24.0 inchScreen Size
Alias
LM240WU8 (SL)(D4)
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C



LG Display LM240WU8-SLD4 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1200, WUXGA
Dot Pitch(mm)
0.090×0.270 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.270×0.270 (H×V) [94PPI]
Mechanical Size :
Active Area(mm)
518.4(H) × 324(V)
Bezel Area(mm)
522.4(H) × 328.0(V)
Outline Dim.(mm)
546.4(H) × 352(V)
Depth(mm)
8.9/12.2 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Normal bezel
Aspect Ratio
16:10 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M3) on left, right bezel
Other Spec :
Weight
2.62/2.75Kgs (Typ./Max.)
Treatment
Antiglare, Hard coating (3H)



LG Display LM240WU8-SLD4 Optical Details

Basic Information :
Luminance(cd/m²)
250 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
14 (Typ.)(G to G)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
White Uniformity
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
77%
sRGB
100% coverage
Adobe RGB
78% coverage
DCI-P3
81% coverage
Rec.2020
58% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM240WU8-SLD4 Interface Detail

Signal Electrical :
Voltage Supply
12.0V (Typ.)
Current Supply
280/330/378mA (Min./Typ./Max.)
Consumption
3.96/4.56W (Typ./Max.)
Signal Type :
LVDS (2 ch, 8-bit)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
LS Mtron
GT103-30S-H23-D
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160C



LG Display LM240WU8-SLD4 Backlight Details

Backlight Features :
Type
WLED
Quantity
13S3P
Position
Edge light type (Right side)
Replacement
-
Shape
3 strings
Life Time
30K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
39.7±2.6V
Current Supply
90/95mA (Typ./Max.)
Consumption
10.7/11.4W (Typ./Max.)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JST
SM06B-SHJH(HF)
1.0 mm
6 pins
1 pcs
BLE-6PINS-CNAACC
Backlight Driver :
No



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
