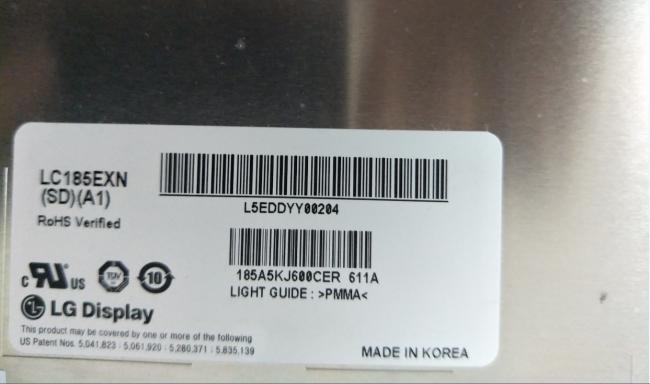

LC185EXN-SDA1 LG Display 18.5" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LC185EXN-SDA1 LG Display 18.5" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY
Product Description
LG Display LC185EXN-SDA1 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LC185EXN-SDA1 | a-Si TFT-LCD , LCM | LC185EXN (SD)(A1) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
LG Display LC185EXN-SDA1 Mechanical Features
| Screen Size : | 18.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.100×0.300 mm | 0.300×0.300 mm [84PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 409.8×230.4 mm | 413.4×234.0 mm | 430.4×254.6 mm | 11.9 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 1.04/1.10Kgs (Typ./Max.) | - | Antiglare (Haze 13%), Hard coating (3H) | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
LG Display LC185EXN-SDA1 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | S-IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Min.)(CR≥10) | 6 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 9972K | 16.7M (6-bit + Hi-FRC) | X:0.279; Y:0.292 | |
| White Uniformity : | 1.30 (Max.)(5 points) | ||
LG Display LC185EXN-SDA1 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 50K(Typ.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM14B-SRSS-TB | 1 pcs | 14 pins | 1.0 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 24.0±1.2V | 0.625/0.66A (Typ./Max.) | 15.0/15.9W (Typ./Max.) | ||||
LG Display LC185EXN-SDA1 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 690/897mA (Typ./Max.) | 2.9/3.77W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 8-bit) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | KDF71G-30S-1H | 1 pcs | 30 pins | 1.0 mm | LVDS-30P1C8B-262A | |
LG Display LC185EXN-SDA1 Packing Features
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 12 pcs / box | - | 550×322×333 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
