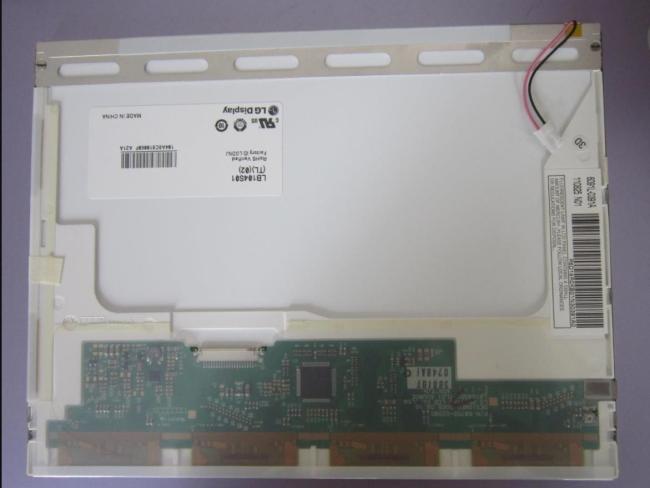

LB104S01-TL02 LG Display 10.4" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG DISPLAY
Product Description
LG Display LB104S01-TL02 Application Details
| Basic Info : | Panel Brand | Panel Model | LB104S01-TL02 | |
|---|---|---|---|---|
| Diagonal Size | 10.4" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LB104S01 (TL)(02) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
LG Display LB104S01-TL02 Mechanical Details
| Pixel Features : | Pixel Format | 800(RGB)×600 [SVGA] | Dot Pitch | 0.088×0.264 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.264×0.264 mm (H×V) [96PPI] | |
| Mechanical Size : | Display Area | 211.2×158.4 mm (H×V) | Bezel Area | 214.2×161.8 mm (H×V) |
| Outline Dim. | 224.5×172 mm (H×V) | Outline Depth | 5.7±0.3 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Features : | Weight | 290/300g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
LG Display LB104S01-TL02 Optical Details
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/45/55 (Min.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 6/19 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.305; Wy:0.320 | Color Numbers | 262K (6-bit) |
| Color Temperature | 7037K | White Uniformity | 1.40 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 46% | sRGB | 63% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 47% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LB104S01-TL02 Backlight Details
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 20K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 1 pcs | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 488/500/640V (Min./Typ./Max.) | Current Input | 2.0/6.0/6.5mA (Min./Typ./Max.) | ||
| Frequency | 45/60/80KHz (Min./Typ./Max.) | Kick-off Voltage | 845/1015V (Max.)(Ta=+25/0℃) | |||
| Consumption | 3.0/3.3W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |
LG Display LB104S01-TL02 Interface Details
| Signal Systerm : | LVDS (1 ch, 6-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 205/230mA (Typ./Max.) | ||
| Consumption | 0.68/0.76W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| LS Mtron | GT100-20P-LS-SMT | 1.0 mm | 20 pins | 1 pcs | LVDS-20P1C6B-090A | |
