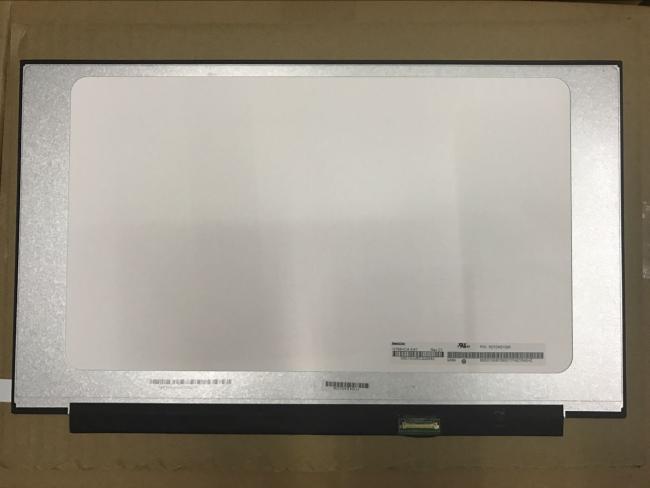

LP156WFC-SPD3 LG Display 15.6" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG DISPLAY
Product Description
LG Display LP156WFC-SPD3 Application Details
| Basic Info : | Panel Brand | Panel Model | LP156WFC-SPD3 | |
|---|---|---|---|---|
| Diagonal Size | 15.6" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LP156WFC (SP)(D3), LGD05E5 | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | 1.0G (9.8 m/s²) |
LG Display LP156WFC-SPD3 Mechanical Details
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.05975×0.17925 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.17925×0.17925 mm (H×V) [141PPI] | |
| Mechanical Size : | Display Area | 344.16×193.59 mm (H×V) | Bezel Area | - |
| Outline Dim. | 350.66×216.25 mm (H×V) | Outline Depth | 3.2 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 360g (Max.) | Surface | Antiglare |
LG Display LP156WFC-SPD3 Optical Details
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.67 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 45% | sRGB | 64% coverage |
| Adobe RGB | 47% coverage | DCI-P3 | 47% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LP156WFC-SPD3 Backlight Details
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 7/12/21V (Min./Typ./Max.) | Current Input | 250/256mA (Typ./Max.) | ||
| Consumption | 3.0/3.07W (Typ./Max.) | |||||
LG Display LP156WFC-SPD3 Interface Details
| Signal Systerm : | eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 197/218mA (Typ./Max.) | ||
| Consumption | 0.65/0.72W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | KN38B-30S-0.5H | 0.5 mm | 30 pins | 1 pcs | EDP-30P2L-020A | |
