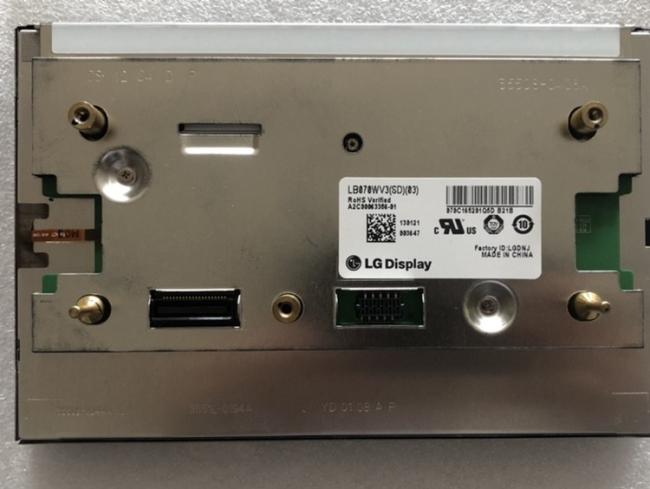

7.0" 800×480 470cd/m2 133PPI Industrial TFT Display LB070WV3-SD02
Price:
120USD
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG DISPLAY
Product Description
LG Display LB070WV3-SD02 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LB070WV3-SD02 | a-Si TFT-LCD , LCM | LB070WV3 (SD)(02) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -40 ~ 95 °C | -40 ~ 105 °C | 3.0G (29.4 m/s²) |
LG Display LB070WV3-SD02 Mechanical Features
| Panel Size : | 7.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0635×0.1905 mm | 0.1905×0.1905 mm [133PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 152.4×91.44 mm | 155.8×94.8 mm | 170×109.6 mm | 15.3/29.4 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 15:9 (W : H) | Landscape type | ||
| Fixation : | Rear mounting holes (3-M3) on pole | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 320/330g (Typ./Max.) | Antiglare, Antireflection | ||
LG Display LB070WV3-SD02 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 470 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 900:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 70/70/30/30 (Typ.)(CR≥10) | - | 15/14 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7213K | 262K (6-bit) | X:0.301; Y:0.325 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 63% | 84% | 65% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 65% | 47% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.18/1.25 (Typ./Max.)(9 points) | ||
LG Display LB070WV3-SD02 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 100/460/600mA (Min./Typ./Max.) | 3.3V (Typ.) | 1.52/1.98W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| IRISO | IMSA-9828S-40A-GFC | 1 pcs | 0.8 mm | 40 pins | ||
LG Display LB070WV3-SD02 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 3 strings | 5S3P | 20K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 94.2/100mA (Typ./Max.) | 14.7/20.0V (Typ./Max.) | 4.15/6.0W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| IRISO | 9850S-10B-TR | 1 pcs | 1.0 mm | 10 pins | ||
LG Display LB070WV3-SD02 Packing Features
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 18 pcs / box | - | 572×372×156 mm (L×W×H) |
