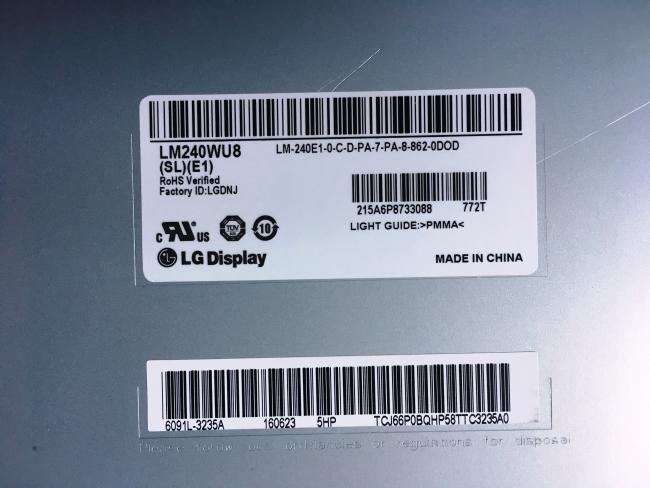

LM240WU8-SLE2 LG Display 24.0" 1920(RGB)×1200 350 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG DISPLAY
Product Description
LG Display LM240WU8-SLE2 Application Details
| Basic Information : | Brand | Model | LM240WU8-SLE2 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 24.0" | Alias | LM240WU8 (SL)(E2) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
LG Display LM240WU8-SLE2 Mechanical Details
| Pixel Features : | Resolution | 1920(RGB)×1200, WUXGA | Dot Pitch(mm) | 0.090×0.270 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.270×0.270 (H×V) [94PPI] | |
| Mechanical Size : | Active Area(mm) | 518.4(H) × 324(V) | Bezel Area(mm) | 522.4(H) × 328.0(V) |
| Outline Dim.(mm) | 546.4(H) × 352(V) | Depth(mm) | 12.2 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 2.65/2.78Kgs (Typ./Max.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
LG Display LM240WU8-SLE2 Optical Details
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AH-IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 14 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 76% | sRGB | 100% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 79% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LM240WU8-SLE2 Interface Details
| Signal Electrical : | Voltage Supply | 10.0V (Typ.) | Current Supply | 215/270mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 2.15/2.70W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| LS Mtron | GT103-30S-H23-D | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160B | |
LG Display LM240WU8-SLE2 Backlight Details
| Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type (Right side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 17S2P | Life Time | 30K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 51.5±3.4V | Current Supply | 130/135mA (Typ./Max.) | ||
| Consumption | 13.4/14.3W (Typ./Max.) | |||||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | SM06B-SHJH(HF) | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CNAANC | |
| Backlight Driver : | No | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
