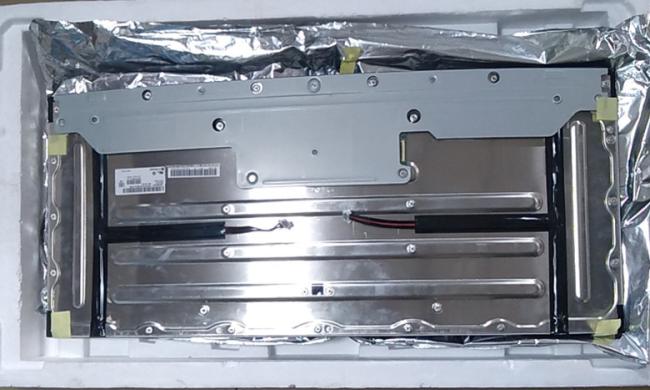

LM340UW1-SSB1 LG Display 34.0" 3440(RGB)×1440 400 cd/m² INDUSTRIAL LCD DISPLAY
LG Display LM340UW1-SSB1 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LM340UW1-SSB1 | a-Si TFT-LCD , LCM | LM340UW1 (SS)(B1) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
LG Display LM340UW1-SSB1 Mechanical Features
| Panel Size : | 34 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 3440(RGB)×1440 | RGB Vertical Stripe | 0.0775×0.2535 mm | 0.2325×0.2325 mm [109PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 799.8×334.8 mm | - | - | - | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 21:9 (W : H) | |||
LG Display LM340UW1-SSB1 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | AH-IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 14 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | 1.07B (8-bit + Hi-FRC) | - |
with an incorporated WLED lighting system, without backlight driver, without touch screen. LM340UW1-SSB1 supports display 3440(RGB)×1440 with aspect ratio of 21:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 799.8(W)×334.8(H) mm. As a AH-IPS, Normally Black, Transmissive LCM product, LM340UW1-SSB1 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. For more latest product detail of LM340UW1-SSB1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor.
