LD430EUE-FHA1 LG Display 43" 1920(RGB)×1080 700 cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: LG DISPLAY
Product Description

LG Display LD430EUE-FHA1 Application Details

Basic Detail :
Manufacturer

LD430EUE-FHA1Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
LD430EUE (FH)(A1)
Panel Size
43 inch
Designed For
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C



LG Display LD430EUE-FHA1 Optical Details

Basic Detail :
Luminance
700 cd/m² (Typ.)
Contrast Ratio
1100:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
12 (Typ.)(Tr+Td) ms
Viewing Angle
89/89/89/89 (Min.)(CR≥10)
Operating Mode
S-IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.281; Wy:0.288
Support Color
16.7M (8-bit)
Color Temperature
9966K
White Variation
1.54 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
97% coverage
Adobe RGB
74% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity



LG Display LD430EUE-FHA1 Mechanical Details

Pixel Features :
Number of Pixel
1920(RGB)×1080, FHD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.1634×0.4902 mm
Pixel Pitch(W×H)
0.4902×0.4902 mm [51PPI]
Physical Size :
Active Viewing
941.184(W)×529.416(H) mm
Overall Dim.
963.6(W)×567.9(H) mm
Bezel Opening
945.8(W)×534.02(H) mm
Overall Depth
17/29.6 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape / Portrait
Aspect Ratio(W:H)
16:9
Shape Style

Other Detail :
Mass
7.50Kgs (Typ.)
Surface
Antiglare (Haze 1%), Hard coating (3H)



LG Display LD430EUE-FHA1 Interface Detail

Signal Electrical :
Input Current
370/481mA (Typ./Max.)
Input Voltage
12.0V (Typ.)
Consumption
4.4/5.7W (Typ./Max.)
Signal Interface
LVDS (2 ch, 8-bit)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JAE
FI-RXE51S-HF
0.5 mm
51 pins
1 pcs



LG Display LD430EUE-FHA1 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
2 strings
Position
Edge light type
Exchange
-
Lamp Shape
2 strings
Lamp Life
50K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
118.2/140V (Typ./Max.)
Input Current
155mA (Typ.)
Consumption
37.4/43.4W (Typ./Max.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
YEONHO
SMH200-H07M
2.0 mm
7 pins
1 pcs
BEL-7PINS-CNANCNA
Backlight Driver :
No



LG Display LD430EUE-FHA1 Packing Details

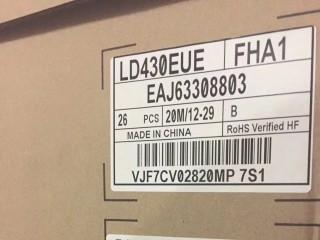

Package Box : Amount Size (L×W×H) Weight
26 pcs / box - 1300×1140×746 mm





FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
