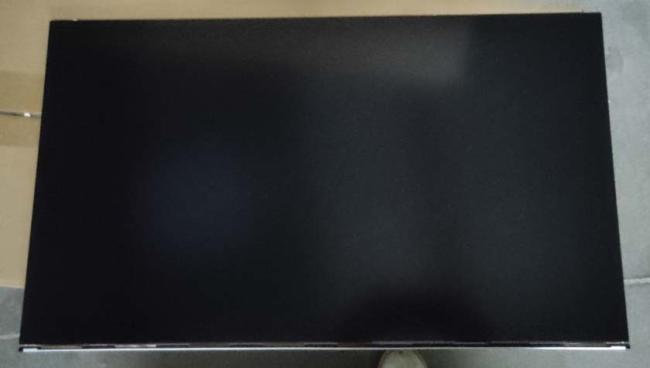

LM270QQ1-SDC1 LG Display 27.0" 5120(RGB)×2880 350 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG DISPLAY
Product Description
LG Display LM270QQ1-SDC1 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LM270QQ1-SDC1 | Oxide TFT-LCD , LCM | LM270QQ1 (SD)(C1) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
LG Display LM270QQ1-SDC1 Mechanical Features
| Panel Size : | 27.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 5120(RGB)×2880, QQHD | RGB Vertical Stripe | 0.03875×0.11625 mm | 0.11625×0.11625 mm [218PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 595.2×334.8 mm | - | 649.84×387.13 mm | 13.97 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | Normal bezel | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | - | Hard coating (3H) | ||
LG Display LM270QQ1-SDC1 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| - | AH-IPS, Normally Black, Transmissive | 1200:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 14/12 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | 16.7M (8-bit) |
LG Display LM270QQ1-SDC1 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 12.0V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | eDP (2 ch, 4 Lanes) | ||||
LG Display LM270QQ1-SDC1 Electronics Features
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
