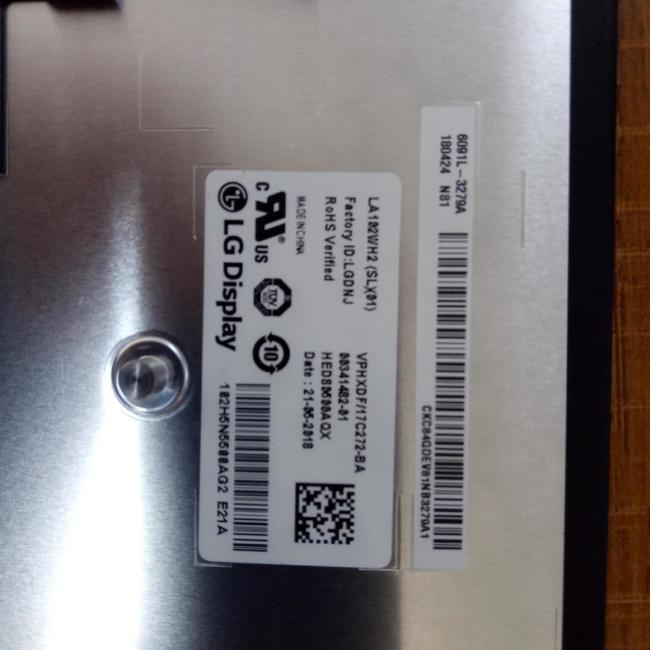

LA102WH2-SL01 LG Display 10.2" 1280(RGB)×720 725 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG DISPLAY
Product Description
LG Display LA102WH2-SL01 Application Details
| Basic Info : | |
|---|---|
| Reliability : |
LG Display LA102WH2-SL01 Mechanical Features
| Panel Size : | 10.2 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1280(RGB)×720, WXGA | RGB Vertical Stripe | 0.0588×0.1764 mm | 0.1764×0.1764 mm [143PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 225.792×127.008 mm | 225.75×126.874 mm | 238.62×141.5 mm | 6.3 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Fixation : | Rear mounting Pole | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 303/313g (Typ./Max.) | Hard coating (3H) | ||
LG Display LA102WH2-SL01 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 725 cd/m² (Min.) | IPS, Normally Black, Transmissive | 800:1 (Min.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Min.)(CR≥10) | Symmetry | 30 (Max.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6904K | 16.7M (6-bit + Dithering) | X:0.307; Y:0.321 | |
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable |
LG Display LA102WH2-SL01 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 60/1.8/80/0.4/0.5mA (Typ.)(DIDD2/DIDD1/AIDD/IGH/IGL) | 1.8/3.3/12.5/18.5/-7.5V (Typ.)(DVDD2/DVDD1/AVDD/VHG/VHL) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | LVDS (1 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 64 pins | ||||
LG Display LA102WH2-SL01 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 4 strings | 10S4P | 10K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 80/85mA (Typ./Max.) | 26.1/29/32.9V (Min./Typ./Max.) | 9.28/11.6W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
