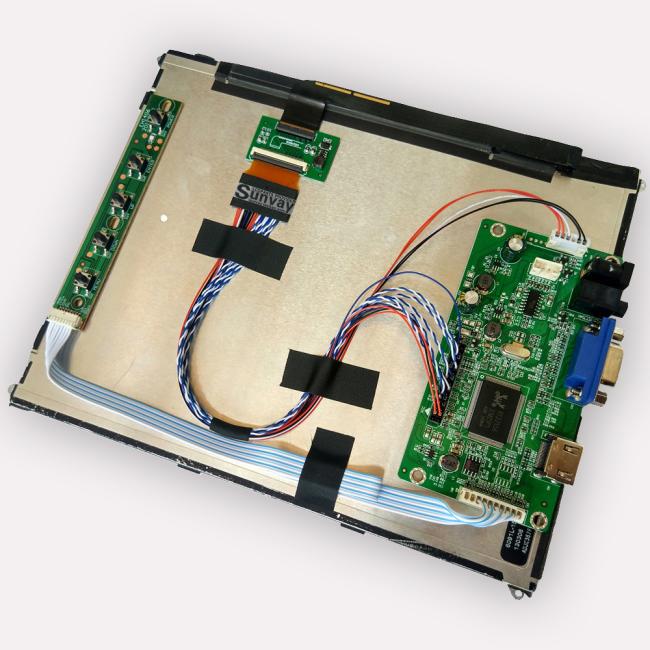

LP097X02-SLEA LG Display 9.7" 1024(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG DISPLAY
Product Description
LG Display LP097X02-SLEA Application Details
| Basic Information : | Brand | Model | LP097X02-SLEA 10 Compatible | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 9.7" | Alias | LP097X02 (SL)(EA) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
LG Display LP097X02-SLEA Mechanical Details
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.064×0.192 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.192×0.192 (H×V) [132PPI] | |
| Mechanical Size : | Active Area(mm) | 196.608(H) × 147.456(V) | Bezel Area(mm) | 201.40(H) × 152.26(V) |
| Outline Dim.(mm) | 210.35(H) × 166.25(V) | Depth(mm) | 3.4/5.95 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (8 pcs) on left, right, up slugs | |||
| Other Spec : | Weight | 160g (Max.) | Treatment | Glare (Haze 0%), Hard coating (3H), Antireflection |
LG Display LP097X02-SLEA Optical Details
| Basic Information : | Luminance(cd/m²) | 200 (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | S-IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 35 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.45/1.75 (Typ./Max.)(13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 48% | sRGB | 67% coverage |
| Adobe RGB | 50% coverage | DCI-P3 | 50% coverage | |
| Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LP097X02-SLEA Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 240/280mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.80/0.92W (Typ./Max.) | |||||
| Signal Type : | LVDS (1 ch, 6-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20474-030E-12 | 1 pcs | 30 pins | 0.4 mm | LVDS-30P1C6B-070B | |
LG Display LP097X02-SLEA Backlight Details
| Backlight Features: | Shape | 6 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 6S6P | Life Time | 10K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | Current Supply | 5/20/25mA (Min./Typ./Max.) | |||
| Consumption | 2.3/2.8W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
