102PPI Industrial LCD Panel 250cd/m2 LM215WF3-SLK1 1920×1080 WLED
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG DISPLAY
Product Description
LG Display LM215WF3-SLK1 Application Details
| Basic Detail : | Manufacturer | Model Name | LM215WF3-SLK1 | |
|---|---|---|---|---|

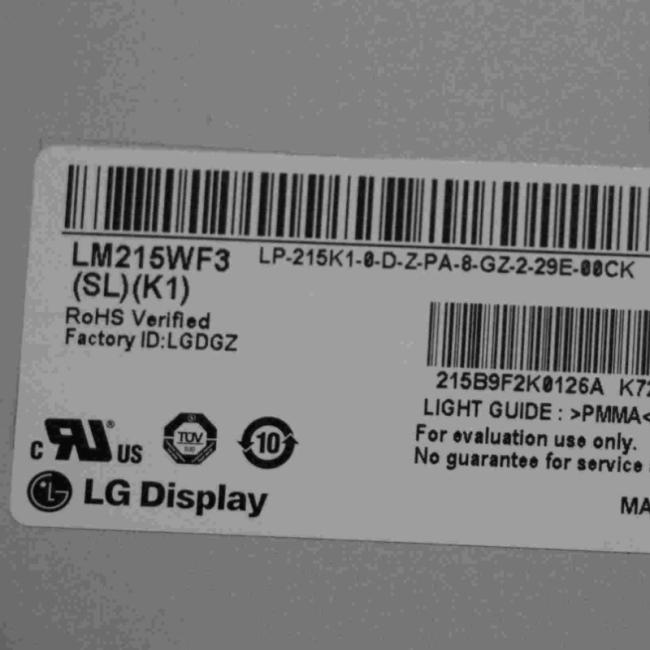

| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM215WF3 (SL)(K1) | |
| Panel Size | 21.5 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
LG Display LM215WF3-SLK1 Optical Details
| Basic Information : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 95% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LM215WF3-SLK1 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.08265×0.24795 mm | Pixel Pitch(W×H) | 0.24795×0.24795 mm [102PPI] | |
| Physical Size : | Active Viewing | 476.064(W)×267.786(H) mm | Overall Dim. | 497.6(W)×292.2(H) mm |
| Bezel Opening | 479.8(W)×271.3(H) mm | Overall Depth | 8.9/11.0 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Normal bezel | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 1.92/2.02Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
G Display LM215WF3-SLK1 Interface Details
| Signal Electrical : | Input Current | 920/1150mA (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 3.75/4.7W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| UJU | IS100-L30O-C23 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160B | |
LG Display LM215WF3-SLK1 Lightting Details
| Lamp Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Position | Edge light type (Right side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 16S2P | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 120/125mA (Typ./Max.) | Input Voltage | 49.6±3.2V | ||
| Consumption | 11.9/12.7W (Typ./Max.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SM06B-SHJH(HF) | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CNAANC | |
| Backlight Driver : | No | |||||
LG Display LM215WF3-SLK1 Packing Details
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 14 pcs / box | 365×315×570 mm | - |
