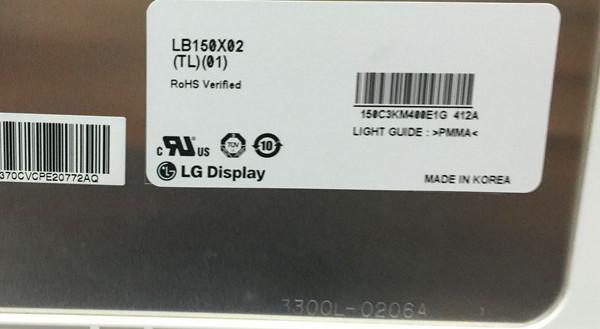

1024×768 RGB Industrial TFT Display 300cd/m2 LB150X02-TL01 XGA 85PPI

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: LG. LCD
Product Description

LG. LCD LB150X02-TL01 Application Details

Basic Information :
Brand

LB150X02-TL01Model
Type
a-Si TFT-LCD , LCM
Used For

15.0 inchScreen Size
Alias
LB150X02 (TL)(01)
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C



LG. LCD LB150X02-TL01 Mechanical Details

Pixel Features :
Resolution
1024(RGB)×768, XGA
Dot Pitch(mm)
0.099×0.297 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.297×0.297 (H×V) [85PPI]
Mechanical Size :
Active Area(mm)
304.128(H) × 228.096(V)
Bezel Area(mm)
307.4(H) × 231.3(V)
Outline Dim.(mm)
326.5(H) × 253.5(V)
Depth(mm)
11.2 (Typ.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M3) on left, right bezel
Other Spec :
Weight
1.00Kgs (Typ.)
Treatment
Antiglare, Hard coating (3H)



LG. LCD LB150X02-TL01 Optical Details

Basic Information :
Luminance(cd/m²)
300 (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
75/75/70/75 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
2/6 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
White Uniformity
-
1931 Color Gamlt :
NTSC Ratio
62%
sRGB
86% coverage
Adobe RGB
64% coverage
DCI-P3
64% coverage
Rec.2020
46% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG. LCD LB150X02-TL01 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
548mA (Typ.)
Consumption
1.81W (Typ.)
Signal Type :
LVDS (1 ch, 8-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
LS Mtron
GT123-20P-H16-LSS
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-040A



LG. LCD LB150X02-TL01 Backlight Details

Backlight Features :
Type
CCFL
Quantity
2 pcs
Position
Edge light type
Replacement
-
Shape
Straight
Life Time
50K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
580V (Typ.)
Current Supply
7.0mA (Typ.)
Consumption
8.12W (Typ.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JST
BHR-03VS-1
4.0 mm
3 pins
2 pcs
BLL-3PINS-HNL
Backlight Driver :
No





LG. LCD LB150X02-TL01 Packing Details

Package Box : Quantity Weight Box Size
14 pcs / box - 370×320×413 mm (L×W×H)



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
