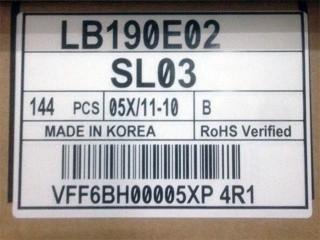

19.0" 1280×1024 RGB 330cd/m2 Industrial Lcd Display LB190E02-SL03 86PPI
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG DISPLAY
Product Description
LG Display LB190E02-SL03 Application Details
| Basic Info : | Panel Brand | Panel Model | LB190E02-SL03 | |
|---|---|---|---|---|
| Diagonal Size | 19.0" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LB190E02 (SL)(03) | |
| Reliability : | Operating Temp. | 0 ~ 60 °C | Storage Temp. | -20 ~ 70 °C |
LG Display LB190E02-SL03 Mechanical Details
| Pixel Features : | Pixel Format | 1280(RGB)×1024 [SXGA] | Dot Pitch | 0.098×0.294 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.294×0.294 mm (H×V) [86PPI] | |
| Mechanical Size : | Display Area | 376.32×301.056 mm (H×V) | Bezel Area | 380.3×305.0 mm (H×V) |
| Outline Dim. | 396×324 mm (H×V) | Outline Depth | 12.8±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 5:4 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.25/1.30Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
LG Display LB190E02-SL03 Optical Details
| Basic Information : | Brightness | 330 cd/m² (Typ.) | Contrast Ratio | 900:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 11/7 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.314; Wy:0.338 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6366K | White Uniformity |
1.33 (Max.)(9 points)
|
|
| 1931 Color Gamlt : | NTSC Ratio | 74% | sRGB | 94% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 77% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LB190E02-SL03 Backlight Details
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 4 strings | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 32.0/34.0V (Typ./Max.) | Current Input | 90/95mA (Typ./Max.) | ||
| Consumption | 11.52/12.92W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | Lamp Driver | No | |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | 05010HR-06C(G) | 0.5 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | |
LG Display LB190E02-SL03 Interface Details
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 0.80/1.04A (Typ./Max.) | ||
| Consumption | 4.0/5.2W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| LS Mtron | GT103-30S-H23 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A | |
LG Display LB190E02-SL03 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 12 pcs / box | - | 408×355×474 mm |
