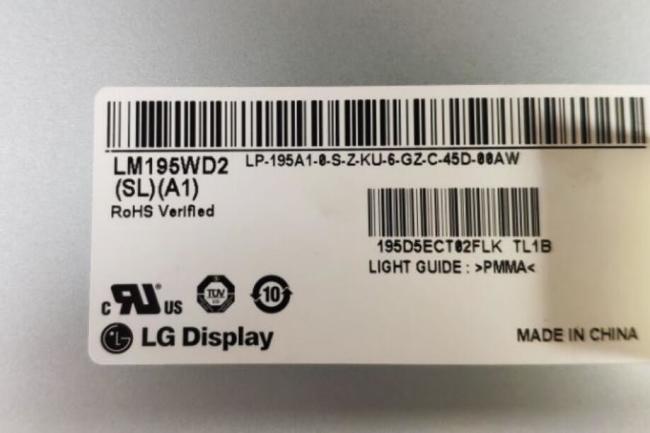

94PPI RGB 19.5 Inch WLED TFT LCD Panel 250cd/M2 LM195WD2-SLA1 1600×900
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG DISPLAY
Product Description
LG Display LM195WD2-SLA1 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LM195WD2-SLA1 | a-Si TFT-LCD , LCM | LM195WD2 (SL)(A1) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
LG Display LM195WD2-SLA1 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 250 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 93% | 72% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33 (Max.)(9 points) | ||
LG Display LM195WD2-SLA1 Mechanical Features
| Panel Size : | 19.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1600(RGB)×900 [HD+] | RGB Vertical Stripe | 0.2712×0.2626 [94PPI] | 0.0904×0.2626 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 433.92(H) × 236.34(V) | 437.2(H) × 239.6(V) | 452(H) × 263(V) | 8.2/11.0 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 17:9 (H:V) | Normal bezel | |
| Mounting : | Side mounting holes (4-M3) on up, down bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 1.52/1.60Kgs (Typ./Max.) | - | Antiglare, Hard coating (3H) | ||
LG Display LM195WD2-SLA1 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Right side) | 12S2P | 2 strings | 30K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 36.8±2.4V | 110/115mA (Typ./Max.) | 8.1/8.6W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| No | Connector | |||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| LS Mtron | GT108-6P-H26-E3500 | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CNAANC | |
LG Display LM195WD2-SLA1 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 565/650mA (Typ./Max.) | 2.83W (Typ.) | ||||
| Interface Features : | Position | Signal | Type | |||
| LVDS (2 ch, 8-bit) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| LS Mtron | GT103-30S-HF15-E2500 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A | |
LG Display LM195WD2-SLA1 Packing Features
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 14 pcs / box | - | 355×305×514 mm (L×W×H) |
