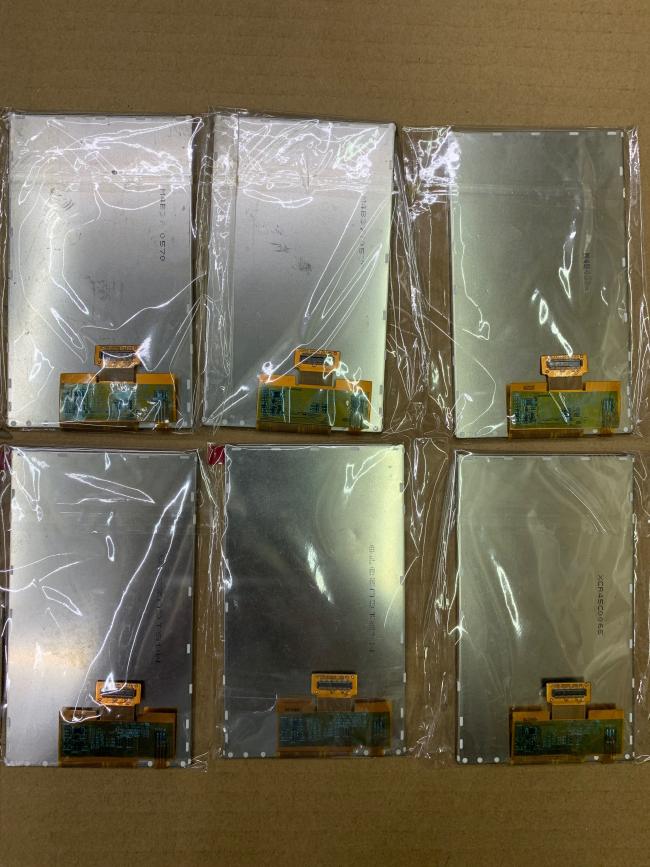

480×800 WLED 600cd/M2 WVGA TFT LCD Panel 4.3 Inch LB043WV2-SD01 217PPI
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG DISPLAY
Product Description
LG Display LB043WV2-SD01 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LB043WV2-SD01 | a-Si TFT-LCD , LCM | LB043WV2 (SD)(01) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C |
LG Display LB043WV2-SD01 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 600 (Typ.) | 80/80/80/80 (Typ.)(CR≥10) | 40 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6638K | 16.7M (8-bit) | X:0.310; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 70% | 91% | 70% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 73% | 52% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) | ||
LG Display LB043WV2-SD01 Mechanical Features
| Panel Size : | 4.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 480(RGB)×800 [WVGA] | RGB Vertical Stripe | 0.117×0.117 [217PPI] | 0.039×0.117 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 56.16(H) × 93.6(V) | - | 60.06(H) × 102.97(V) | 1.95±0.15 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 3:5 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 32.5±3.3g | ||||
LG Display LB043WV2-SD01 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 5S2P | 2 strings | 15K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 20mA (Typ.) | ||||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
LG Display LB043WV2-SD01 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 1.8/2.8/2.8V (Typ.)(IOVCC/VCC/VCI) | - | 106.4/198mW (Typ./Max.) | ||||
| Voltage for Display Signals : | -0.3≤VIL≤0.2IOVCC; 0.8IOVCC≤VIH≤IOVCC | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 8-bit) + SPI | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| LS Mtron | GB042-50P-H10-E3000 | 0.4 mm | 50 pins | 1 pcs | ||
