Forged Steel Inverted Bucket Steam Trap 941 951 Model Thread DN15 Flange End
Forged Steel Inverted Bucket Steam Trap 941 951 Model Thread Or Flange End
DSC Brand 642- 646 Series Model Forged Steel Inverted Bucket Steam Trap
Features:
1. Those steam traps are installed DSC's patent non-return valve,have long work life
2. We have full confidence in our steam traps,so we promise two years warranty
3. The steam traps are made of forged steel,suitable for the overheated steam that produced by the
Petroleum chemical industry and power plants
4. There are different orifice steam traps can choose
5. Back pressure resistance is strong, suitable for recycling system
6. We can install some other parts to the steam trap according to customer's requirement
7. Special specifications can accept customization
941 and 941F Steam Traps Specifications: unit of size:mm
| No. | CONNECTION SIZE | A | B | C | D | E | MOP | WT.SE | WT.FLG |
| 941,941F | 15.20 | 161 | 225 | 354 | 0 | 19 | 69 | 11 | 12 |
951 and 951F Steam Traps Specifications: unit of size:mm
| No. | CONN. | A | B | C | D | E | MOP | WT.SE | WT.FLG |
| 951,951F | 15.20.25 | 200 | 35 | 298 | 273 | 0 | 69 | 16 | 17 |
*NPT,BSPT,SW available
Main Parts Material Of This Steam Trap:
| CAP & BODY | ASTM A105. WCB |
| BUCKET | STAINLESS STEEL |
| MECHANISM | STAINLESS STEEL |
| SEAT& VALVE | HARDENED S. S |
| GASKET | COMPRESSED NON-ASBESTOS |
| STRAINER | STAINLESS STEEL |
| CHECK VALVE | STAINLESS STEEL |
| BOLTS | ASTM A193 B7 |

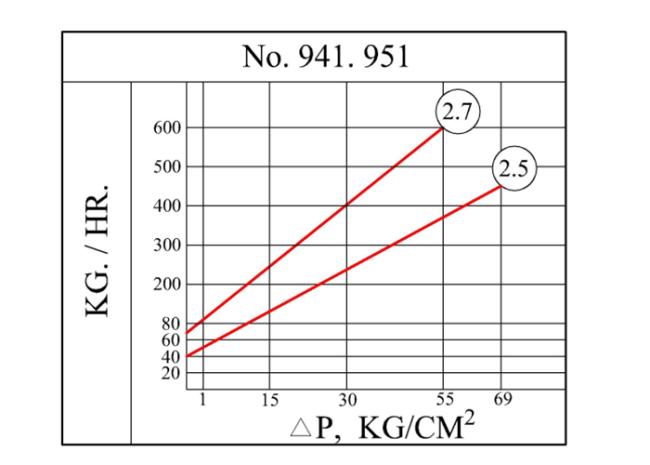

Water Discharge Capacity Of Those Steam Traps:
