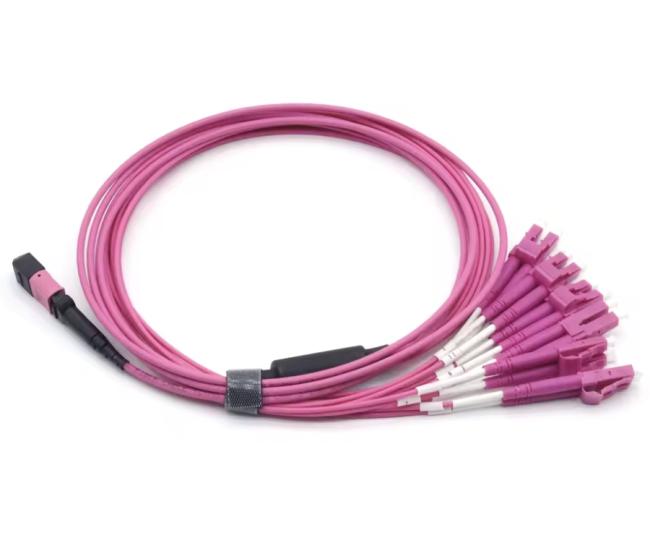

40G Fiber Optic Patch Cord 8/12/24 Cores SM / MM / OM4 MPO Fiber Patch Cord
Price:
Negotiation
MOQ:
1 Piece
Delivery Time:
1 ~ 10 Working days based on quantity
Brand:
JUNPU
Product Description
40G Fiber Optic Patch Cord 8/12/24 Cores SM / MM / OM4 MPO Fiber Patch Cord
FAQ:
Q1: What is your main products?
A: Fiber optic cable, patch cord, adapter, pigtail, connector, joint closure and so on.
Q2: What is your delivery time?
A: Generally, it will take 7-15 Working Days.The specific delivery time depends on the items and quantity of your order.
A: Generally, it will take 7-15 Working Days.The specific delivery time depends on the items and quantity of your order.
Q3: Can you offer Free Pre-Sales Consulting or Free Sample?
A: Yes. Evertop offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for our customers. Free Samples are available, for your evaluation, if you are interested
A: Yes. Evertop offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for our customers. Free Samples are available, for your evaluation, if you are interested
Q4: How can I pay for order?
A: We accept T/T, L/C, western union.
A: We accept T/T, L/C, western union.
Applications:
- FTTH FTTB FTTX Network,
- FTTA FTTH BBU RRU RRH LTE &
- Base station,
- For ODF internal link,
- For room equipment internal link,
- FTTH/Test equipments/TV/LAN/Telecommunication equipments
Specification:
| tems | Single mode | Multimode | ||||||
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |||
| Insertion Loss | <0.2dB | <0.3dB | ||||||
| Return Loss | ≥45dB | ≥50dB | ≥60dB | ≥35dB | ||||
| Durability | <0.1dB typical change, 500 matings |
|||||||
| Operating Temperature | -40 to +75°C | -40 to +75°C | ||||||
| Ferrule Hole Sizes | 125.0+1/-0um, Conentricity:≤1um | 125um,Conectricity:1≤3um | ||||||
| 125.3+1/-0um, Conentricity:≤1um | 127um,Conectricity:1≤3um | |||||||
| 125.5+1/-0um, Conentricity:≤1um | 128um,Conectricity:1≤3um | |||||||
| 126.0+1/-0um, Conentricity:≤1um | ||||||||
| Connector Type | Performance Level | |||||
| Standard | Elite | |||||
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 | ||
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 | ||
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 | |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 | |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / | |
