High Quality 5-Tine Orange Undercarriage Spareparts Grapple Bucket
5-Tine Orange Peel Grapple Heavy Guarantee Hydraulic Rotation China OEM Heavy Machinery Undercarriage Grapple Bucket
1. What is Hydraulic Grapple?
The Hydraulic Grapple represents a highly efficient tool for managing waste steel, iron, minerals, debris, or other irregular bulky materials, serving as a substitute for human labor in various scenarios. Classified as a hydraulic structural device, it comprises a hydraulic cylinder, a gripping jaw, connecting posts, ear plates, ear cups, bucket teeth, tooth blocks, and additional components. The core actuating element is the hydraulic cylinder.
2. Hydraulic Grapple Advantages / Features
* Low overall height for limited area.
* Robust structure & optimum weight.
* Decreased cycle time thereby reducing operational cost.
* Maximized Gripping capacity.
* Special heat-treatment & long working life.
* Hose guard, cylinder high-pressure hose installed inside.
* Shock-absorption-Cushion Cylinder.
* Full 360-degree hydraulic rotation.
3. How to Choose the Right Model?

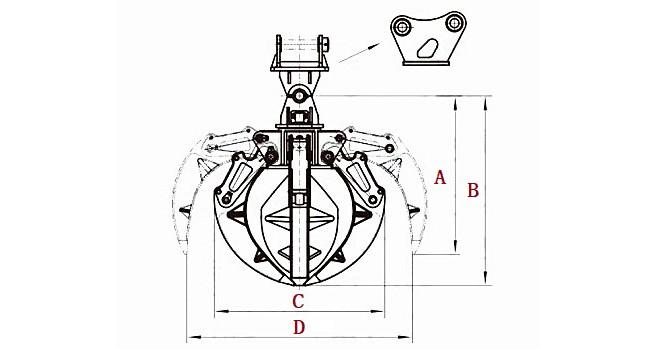

Orange Peel Grapple Main Parameters
| egory | Unit | YT10-1 | YT10-2 | YT20-1 | YT30-1 |
| Open Hight (A) | mm | 890 | 1110 | 1390 | 1600 |
| Close Hight (B) | mm | 1060 | 1325 | 1660 | 1910 |
| Close width (C) | mm | 970 | 1210 | 1510 | 1740 |
| Open width (D) | mm | 1260 | 1580 | 1975 | 2275 |
| Cylinder thrust | ton | 4 | 6.5 | 10.5 | 13 |
| Oil pressure | Mpa | 18-21 | 21-25 | 21-25 | 21-25 |
| Volum | m3 | 0.4 | 0.6 | 0.8 | 1 |
| Suitable Excavator | ton | 5-9 | 10-16 | 17-23 | 24-30 |
| Weight | kg | 350-400 | 700-800 | 950-1100 | 1500-1700 |
The Models Above Are Just For Reference, Many Models We Can't List Here. We Can Supply More Products As Your Requirement. Please Feel Free To Send Us Your Inquiry Or Email If You Have Any Requirements.
4. Suitable Excavators
/CASE/DAEWOO/HITACHI/HYDUNDAI/KOMATSU/SAMSUNG// KOBELCO/SANY/ SUMITOMO/ KATO/DOOSAN/ ATLAS/ LOVOL/ SUNWARD/ IHI
5. Hot Sale Products
6. Our Advantages
* World-Class Quality
* Factory Sale Directly With Reasonable Price
* 35 Years' Experience In Excavator & Bulldozer Spare Parts Manufacturing
* Flexible Payment Terms Including T/T, L/C And So On
* Fast Delivery Within 30 Days After Contract Established
* Professional Sales Team, Quality Inspection, And Report, Maritime Logistics Guidance
* After-Sale Service: Video Technical Support, 24h Online Support
