OUCO 1T4M Electric-Hydraulic Marine Deck Crane Yacht Duty Manufacturer
OUCO 1T4M Yacht Duty Marine Yacht Crane
Product Description
OUCO manufactures telescopic cranes in different boom lengths and depending on the crane’s application, we offer certification by all major classification societies and a broad set of available accessories. They are designed and manufactured in conformity with the current Marine Rules and they can be customized on request.
Main Features And Advantages
Self contained unit with integrated hydraulic power pack.
Fail-safe brakes on all movements.
Fully enclosed and equipped operator cabin with air condition.
The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load.
Technology from Germany.
Base on many year's design and fabrication experience of crane and other similar equipment.
Suitable for all kinds of ships and low power consumption and high efficiency.
Welded and high strength box boom for easy maintenance.
With Many safety protection devices---hook up limiter and overload limiter, emergency stop button.
Technical Parameters
| SWL | 1t4m |
| Max. Working radius | 4m |
| Min. Working radius | 1.7m |
| Hoisting speed | 0~15m/min |
| Hoisting height | 20m |
| Slewing speed | 0.8r/min |
| Slewing angle | 360º |
| Luffing time | ~40s |
| Working condition | TRIM≦2º |
| HEEL≦5º | |
| Motor power | Y160K-4-H |
| Working condition | TRIM≦2º |
| HEEL≦5º | |
| Power | 7.5kw |
| Speed | 1430r/min |
| Insukate class | F |
| power resource | AC440V/60HZ |
| Protect class | IP44 |
| Working type | S1 |

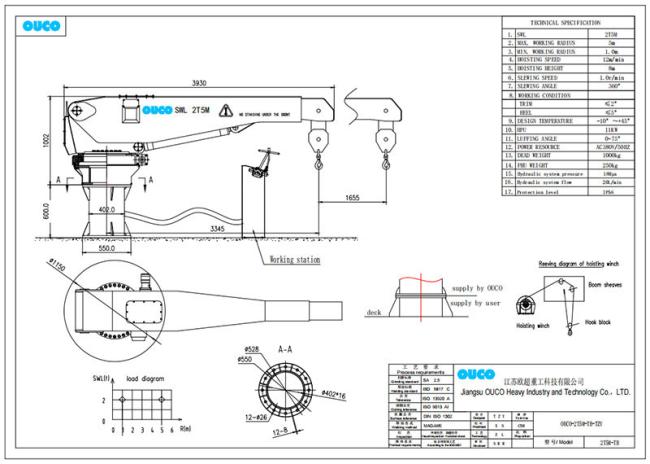

Genernal Arrangement

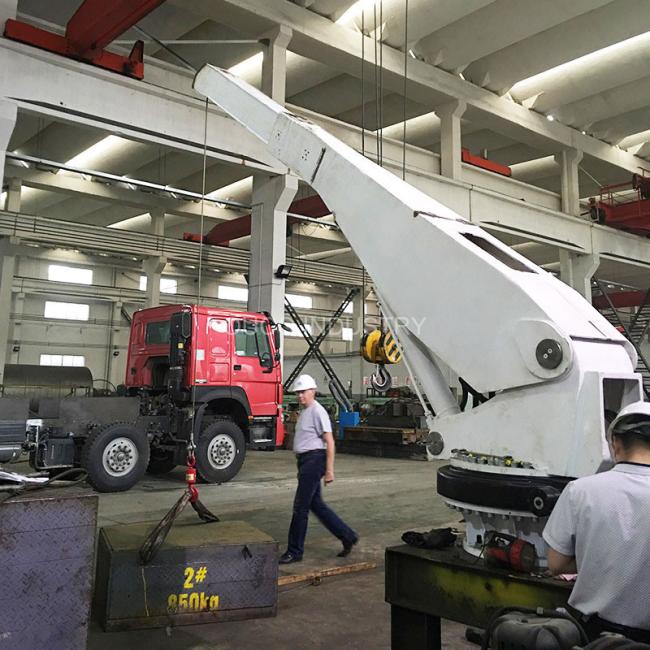

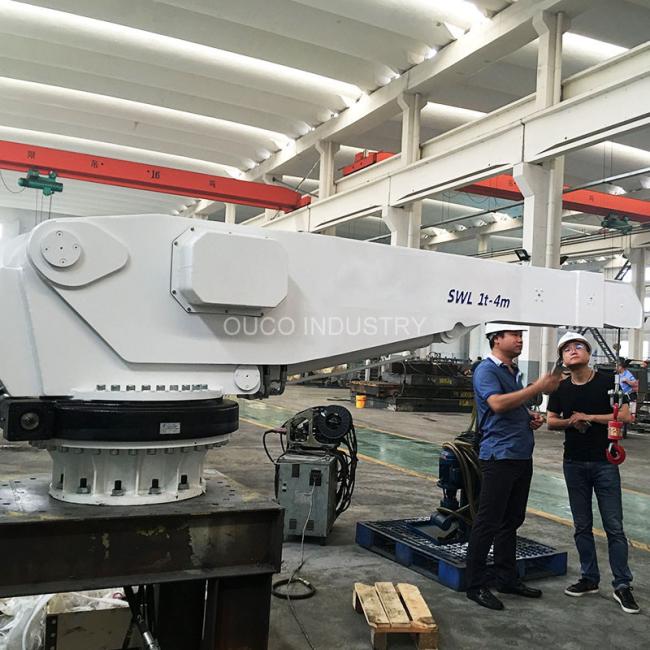

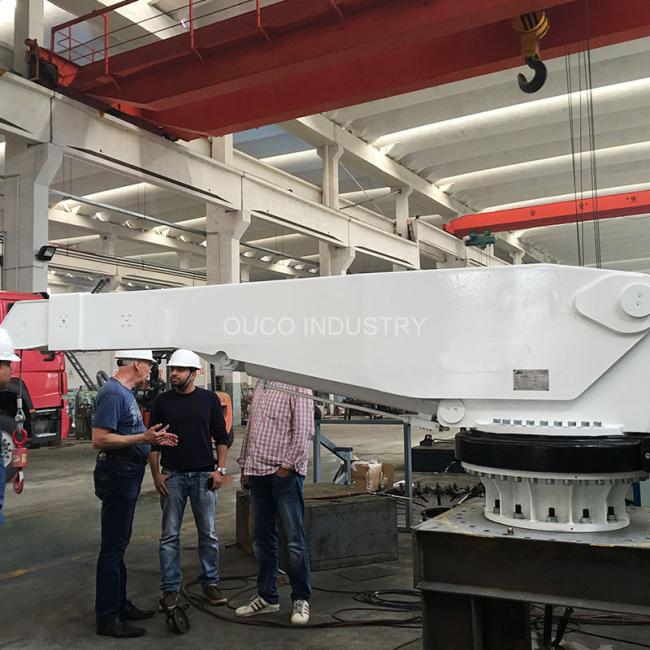

Product Details
Production Process
Company Infprmation
OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction area is 35,000 square meters. OUCO headquartered in crane hometown of Jiangsu Province where representing most advanced machinery manufacturing level in China. OUCO has more than 150 employees, 20 were technical staff. Among that has five senior titles, 10 mid-level titles, and a total of 50 welder (who has got CCS, ABS and other main institutions’ certification). It also has professional organization certificated flaw detection staff, the quality system audit staff, and inspection personnel, etc.
FAQ
1.Q:Can this type work in hazardous environment?
A: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2.Q: Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!country.
4. Q:Safety device
