OUCO 1T4M Electric-Hydraulic Marine Yacht Crane with high quality components
OUCO 1T4M Electric-Hydraulic Marine Yacht Crane
Product Description
OUCO Marine/Offshore Yacht cranes and davit cranes can be designed and manufactured based on technological advancements in materials and construction practices by clients’ requirements. OUCO Marine/Offshore Yacht crane has the advantages and feathers of low self weight, easy operation and friendly maintenance, reliable quality and reasonable designing. From light to heavy duty yacht cranes with telescopic booms of extension, we can all provide.
Product Feature
1. Remote control
2. External hydraulic power packs
3. Anti-collision system
4. Design according to rules and regulations API 2C.
5. Class Societies like ABS, CCS, DNV, LR, RMRS, etc.
6. Diesel hydraulic drive
7. Full electrical system
Technical Parameters
| SWL | 1T4M |
| Max. Working Radius | 4 m |
| Min. Working Radius | 2.5 m |
| Hoisting Speed | 15 m/min |
| Hoisting Height | 20 m |
| Slewing Speed | ~1 r/min |
| Slewing Angle | 360° |
| Luffing Time | ~40 s |
| Power | 7.5 kw |

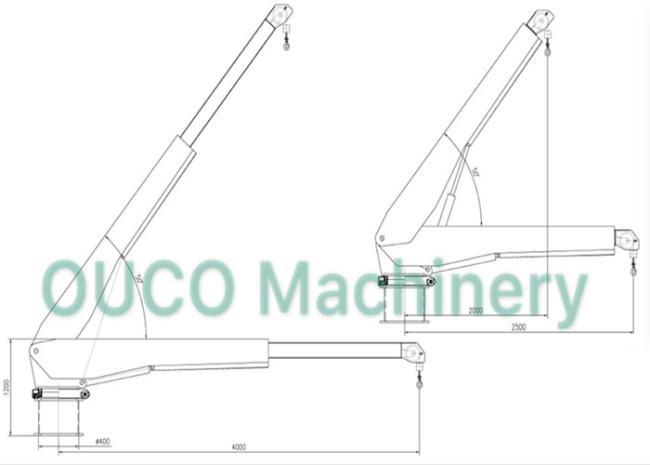

Genernal Arrangement

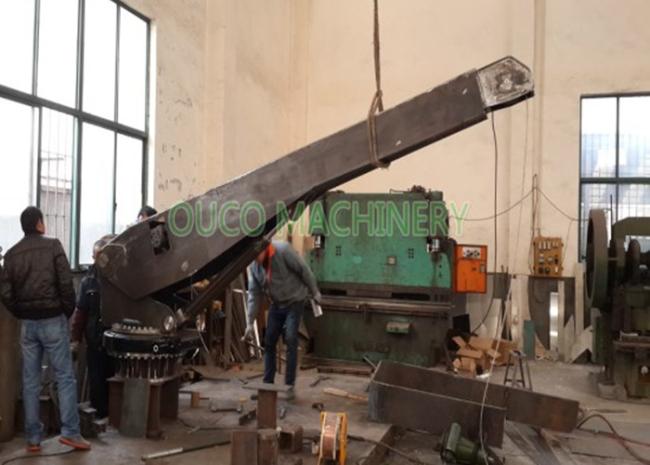

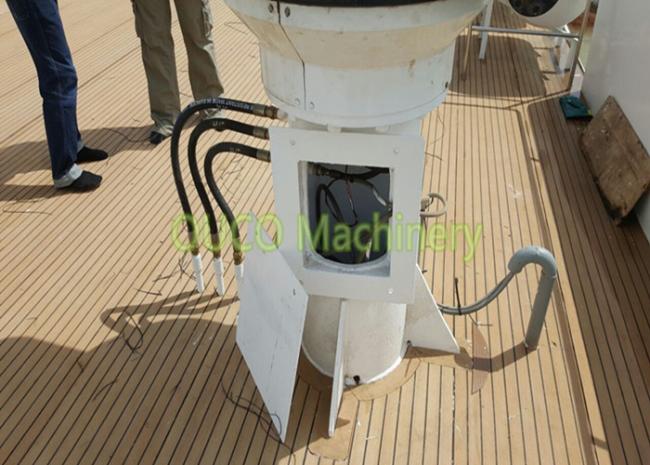

Product Details
FAQ
1. Q:Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Q:Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. Q:How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Q:Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
