Electric Hydraulic Offshore Marine Pedestal Crane With Telescopic Boom
Marine Offshore Pedestal Deck Crane Electric Hydraulic Telescopic Boom Crane
Product description
The telescopic series of cranes offer a diverse product line for application in the Luxury Yacht, Oceanographic, Workboat, Oilfield, Cost Guard or Military industries. These cranes can also be further customized for use in these most demanding of work environments. All of the cranes in the Telescopic Boom line offer several key features that make them powerful solutions for the marine work environment. The most notable of these features include: Extended boom reach with the dexterity for accurate, safe, and efficient material handling.
Product Feature
1) Lifting and flight adjustment by means of hydraulic cylinders;
2) Standard radio remote control, standard control panel;
3) Low manpower costs, easily operated;
4) Longer working life compared to a conventional electrically powered static crane;
5) Less maintenance costs.

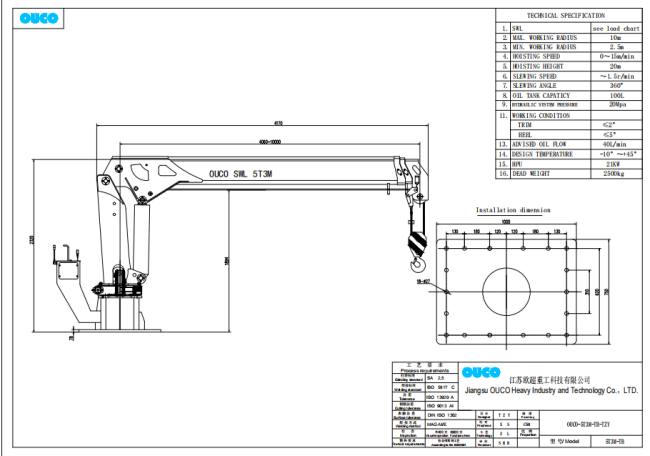

Technical Specification
|
SWL
|
5T3M
|
|
Max.working radius
|
10M
|
|
Min.working radius
|
2.5M
|
|
Hoisting height
|
20M
|
|
Hoisting speed
|
0-15m/min
|
|
Slewing speed
|
1.5r/min
|
|
Design temperature
|
-10-+45°
|
| HPU | 21KW |
| Hydraulic system pressure | 20MPa |
| Working condition | heel≤5° trim≤2° |
|
Dead Weight
|
2500kG
|
Customer Bulid
OUCO factory specializes in crane field for over 10 years. OUCO can design and manufacture any type cranes based on your requirements.
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |

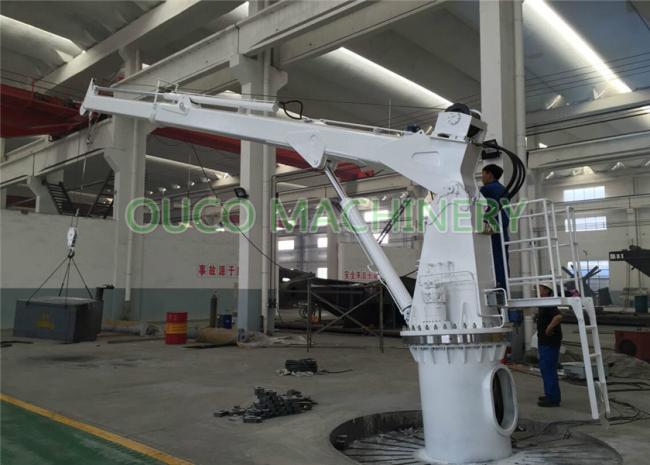

Detailed Images
FAQ
Q:1. What's the information should I provide when inquiry?
A: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q:2. How many operating methods for my selection?
A: Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q:3. Can this type work in hazardous environment?
A: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q:4. Can you provide the serious lifting tools?
A: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, etc as your requirement!
Q:5. How can we install the crane?
A: Our senior engineer can be your side to do the installation guide service and training.
Q:6. Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
For more details, please feel free to contact us.
