IP56 Electric Hydraulic Telescopic Boom Crane 0.2T20M For Marine
Electric Hydrulic Telescopic Boom Shipboard Lift Crane
Product description
Marine Telescopic cranes can be designed and manufactured by clients’ requirements in our own factory. The perfect solution for applications that require reach and compact storage, the Telescopic Boom crane is available with two to four box boom sections.
The availability of a telescopic or fixed jib extension on a telescopic boom is not only easy to attach and use, but it makes it possible to extend the reach of the crane boom by as much as 40 meter. With a jib, boom cranes are capable of reaching boom lengths as tall as 35 meter, which is very beneficial when placing loads at height or lifting personnel using a work platform.
Main Features and advantages
The availability of a telescopic or fixed jib extension on a telescopic boom is not only easy to attach and use, but it makes it possible to extend the reach of the crane boom by as much as from 1 m to 40 meter. With a jib, boom cranes are capable of reaching boom lengths as tall as 35 meter, which is very beneficial when placing loads at height or lifting personnel using a work platform.
Technical Specification
| SWL | 0.2T20M |
| Working Radius | 3~18.7m |
| Hoisting Speed | 0~12m/min |
| Hoisting Height | 30m |
| Slewing Angle | 360° |
| Tirm | ≤2° |
| Heel | ≤5° |
| Motor Power | 18.5KW |
| Luffing tme | 40s |
| Design temperature | -10-+45 ° |
| Protect class | IP56 |
| Insurlate class | F |

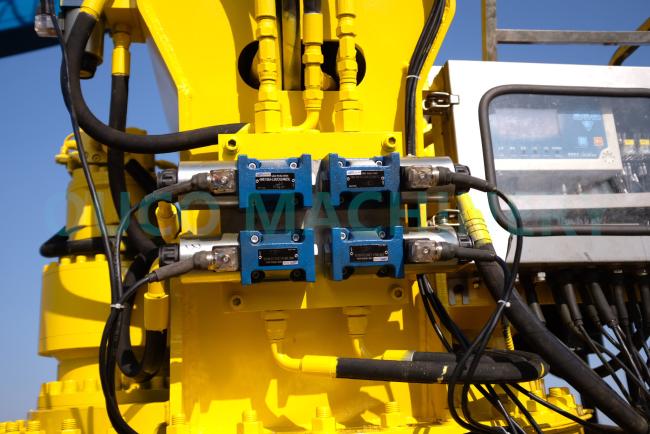

Detailed Images
Packing
Our Company
OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction area is 25,000 square meters.
OUCO headquartered in crane hometown of Jiangsu Province where representing most advanced machinery manufacturing level in China.
OUCO provides high quality handling solutions and access systems for the Crane, port industries and various non-standard structural parts. The company has its own developing, designing, and manufacturing capacity for products of metallurgical complete sets of equipment, marine cranes, truck cranes, boiler desulfurization and denitrification environmental protection products in air pollution control field. Company products are widely used in the metallurgical, ship, port, electricity, petroleum, building materials and chemical industries.
OUCO has agents in several countries and serves a global client base from strategic points in Europe, Asia, Africa, Australia and Middle East. It has an annual output of 11,000 tons of steel structure production capacity.
Certificate
FAQ
Q: What’s working radius of your crane?
A: From 1m to 100m, we can design and make according to your requirement.
Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.
Q: Can this crane be explosion proof?
A: Sure, we can equip any extra function based on your requirement.
Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.
Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole piece.
