0.2t 20m Telescopic Boom Crane High Safety Marine For Lifting Cargoes
Price:
negotiation
MOQ:
1
Delivery Time:
2 months
Brand:
OUCO
Product Description
0.2t20m Telescopic Boom Crane High Safety Marine Performance For Lifting Cargoes
OUCO 0.2T20M Telescopic Boom Crane
Product Description:
The TB series crane is designed as an electro-hydraulic driven telescopic boom crane, with integrated electro-hydraulic power unit, delivered as a complete unit ready for installation to vessels. The crane is equipped with hydraulic operated winch, hydraulic operated luffing and hydraulic operator extension and hydraulic operated slewing system. The crane is installed with a rolled steel pedestal for bolting or welding to deck with a height of 2000mm and pedestal diameter is depend on the SWL of the crane. The standard TB crane will supply with an operator platform. Operator cabin is optional.
The crane and all it associated components / equipment shall be designed in accordance to any leading classification societies which is upon request. The crane shall be tested and adjusted ready for installation by welding or bolting to vessel deck. Power connection shall be provided for electrical supply through integrated electrical slip rings.
The crane and all it associated components / equipment shall be designed in accordance to any leading classification societies which is upon request. The crane shall be tested and adjusted ready for installation by welding or bolting to vessel deck. Power connection shall be provided for electrical supply through integrated electrical slip rings.
Main Features And Advantages
Easy maintenance at all situation;
Self contained unit with integrated hydraulic power pack.
Fail-safe brakes on all movements.
Fully enclosed and equipped operator cabin with air condition.
The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load.
Technology from Germany.
Base on many year's design and fabrication experience of crane and other similar equipment.
Suitable for all kinds of ships and low power consumption and high efficiency.
Welded and high strength box boom for easy maintenance.
With Many safety protection devices---hook up limiter and overload limiter, emergency stop button.
Self contained unit with integrated hydraulic power pack.
Fail-safe brakes on all movements.
Fully enclosed and equipped operator cabin with air condition.
The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load.
Technology from Germany.
Base on many year's design and fabrication experience of crane and other similar equipment.
Suitable for all kinds of ships and low power consumption and high efficiency.
Welded and high strength box boom for easy maintenance.
With Many safety protection devices---hook up limiter and overload limiter, emergency stop button.
Product Information
| SWL | 0.2T20M |
| Max. Working radius | 20m |
| Min. Working radius | 2.5m |
| Hoisting speed | 0~15m/min |
| Hoisting height | 20m |
| Slewing speed | ~0.6r/min |
| Slewing angle | 360° |
| Luffing time | ~ 90s |
| Luffing angle | 0~75º |
| Design temperature | -20º~+45º |
| Working condition | TRIM ≤2° |
| HEEL ≤5° | |
| Motor Power | 160Kw |
| Protect class | IP44 |
| Working type | S1 |

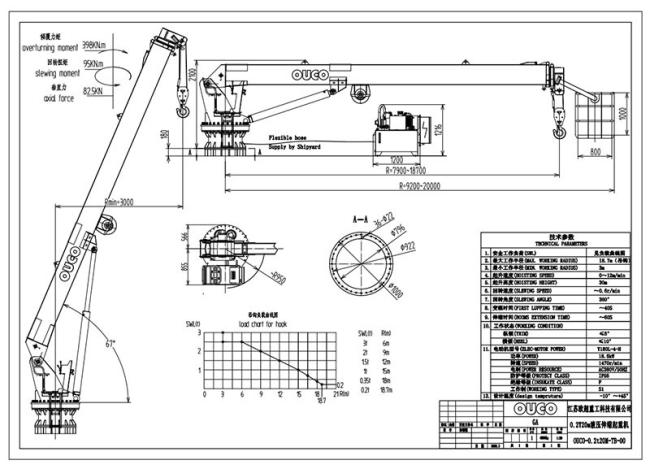

GA Drawing
Production Process
Company Information
Company Information
OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction area is 35,000 square meters. OUCO headquartered in crane hometown of Jiangsu Province where representing most advanced machinery manufacturing level in China. OUCO has more than 150 employees, 20 were technical staff. Among that has five senior titles, 10 mid-level titles, and a total of 50 welder (who has got CCS, ABS and other main institutions’ certification). It also has professional organization certificated flaw detection staff, the quality system audit staff, and inspection personnel, etc.
FAQ:
Q: What’s working radius of your crane?
A: From 1m to 100m, we can design and make according to your requirement.
Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.
Q: Can this crane be explosion proof?
A: Sure, we can equip any extra function based on your requirement.
Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.
Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole piece.
