Offshore Hydraulic Telescopic Boom Marine Crane 10m/Min 5T 37M
5T37M Platform Offshore Telescopic Boom Marine Cranes
Product description
OUCO 5T37M Telescopic Boom Offshore Crane: 25T10M, 20T12M, 15T15M, 5T37M and other cranes with lifting points have a longer outreach function and can complete the lifting work.
The availability of the telescopic boom is not only easy to install and use, but also extends the reach of the crane boom to 37 meters.
Using a jib, the jib crane can have a jib length of up to 100 meters. This is useful if you want to leave luggage high or use a workbench to carry people.ight or lifting personnel using a work platform.
Main Features and advantages
The advantages of telescopic cranes are light weight, simple design and easy maintenance.
Such offshore cranes are particularly widely used for marine cargo handling and hoisting.
According to different environments, it can meet the corresponding customized requirements.
OUCO marine telescopic cranes can be designed to be used on platforms, harbours or vessel decks.
Provide a certificate of classification society according to the customer's request.
Technical Specification
| SWL | see load chart |
| Working Radius | 5~37m |
| Hoisting Speed | 10m/min(main hook) |
| Hook travel | 100m |
| Slewing Speed | ~0.5r/min |
| Slewing Angle | 360° |
| Luffing time | ~120s |
| Design Temperature | -9.9° - +50 ° |
| Tirm | ≤2° |
| Heel | ≤5° |
| Power | 132KW |
| Speed | 1480r/min |
| Sea state | 2grade |
| Power source | AC440V, 60Hz, 3P |
| Protect Class | F |
| Oil flow | 190L/min |
| Dead weight | 55T |
General Arrangement

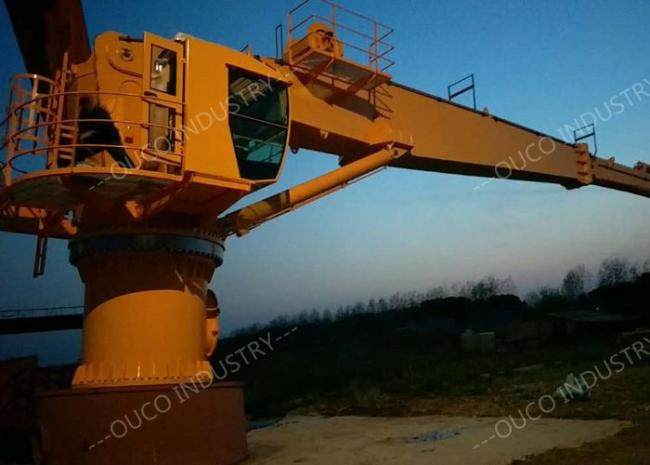

Product Picture
Packing&Shipping
For more details, please feel free to contact me us.
