2t 6m Telescopic Knuckle Boom Crane For Port And Ships Operate Safety
2t6m Telescopic Knuckle Boom Crane For Port And Ships,Operate Safety
2t6m telescopic knuckle boom crane for port and ships
Product Description
1. Standalone unit with integrated hydraulic power unit.
2. Fail-safe brakes for all operations.
3. Fully enclosed air-conditioned operating room with integrated heating.
4. Double pump system, independent hydraulic circuit for lifting and roughing/steering, to ensure efficient loading and unloading of goods.
5. The variable speed winch is automatically adjusted to the highest speed suitable for the load.
6. Based on years of experience in cranes and port equipment.
5. The variable speed winch is automatically adjusted to the highest speed suitable for the load.
7. Based on years of experience in designing and manufacturing cranes and other similar equipment.
7. German technology, all parts are imported from Europe and the United States, using internationally renowned brands.
8. Suitable for all kinds of ships, low power consumption, high efficiency.
Technial Specification
| SWL | 2T6M |
| Max. Working radius | 6m |
| Min. Working radius | 1.25m |
| Hoisting speed | 0~15m/min |
| Hoisting height | 25m |
| Slewing speed | ~0-1r/min |
| Slewing angle | 360° |
| Luffing time | ~ 45s |
| Luffing angle | 0~75º |
| Design temperature | -10º~+45º |
| Working condition | TRIM ≥2° |
| HEEL ≥5° | |
| Classification | ABS/BV/CCS/RMRS |
| Working type | S1 |

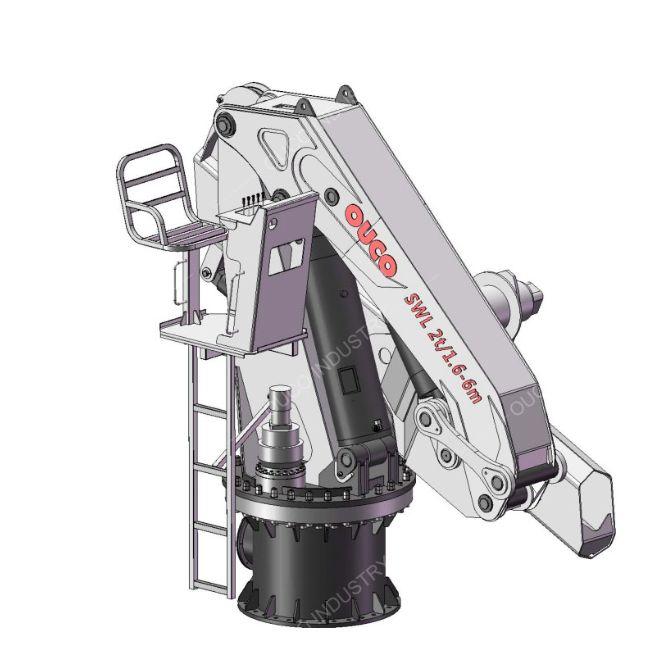

GA Drawing

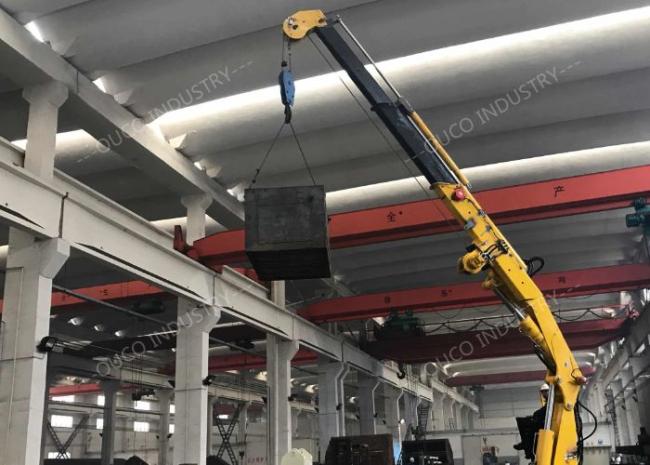

Product Picture
Our certification
Our factory
For more details, please feel free to contact us.
