Ocean Stiff Boom Crane Hydraulic Power 5T 15M / 3T 15M
Ocean Stiff Boom Crane Hydraulic Power 5T15M&3T15M
OUCO 5T15M Ocean Stiff Boom Crane Hydraulic Power
Product description
What is a sea stiff boom crane?
The straight arm marine crane can be used for a variety of maritime work. It is simple in structure, easy to replace parts, and will not fail in daily use. It is durable and inexpensive. It is your excellent freight handling solution.
The hanging points are 5T3M and 5T15M, and the amplitude can reach 75 degrees.
It can be used for lifting cargo, offshore construction and port hoisting. If the cargo you lift daily is special and the weight is uncertain, please send information to consult us, and we can provide you with a suitable solution.
We can provide: replacement spare parts, product instruction manual, installation guide, classification society certification, freight plan
Technial Specification
| SWL | 5t |
| Max Working Radius | 15m |
| Min Working Radius | 3M |
| Hoisting Speed |
0~15m/min&0~45m/min (According to cargo weight) |
| Hoisting Height | 30m |
| Slewing Speed | ~1r/min |
| Slewing Angle | 360° |
| Power Resource | AC380V, 50Hz,3PH |
| Self Weight | 2500KG |
| Working Condition | Loading |
| Motor | 45KW |
| Protection Class | IP56 |
| Working Type | S1 |

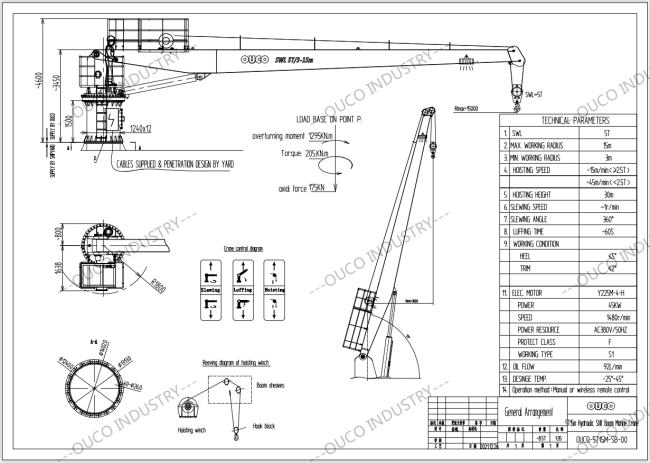

General Arrangement

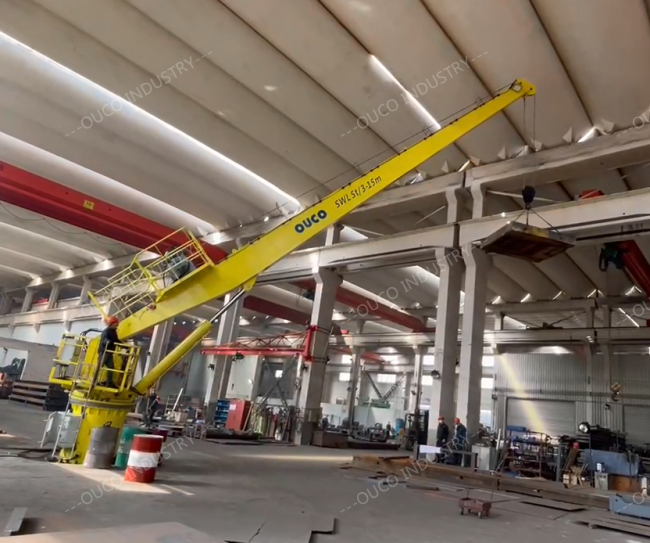

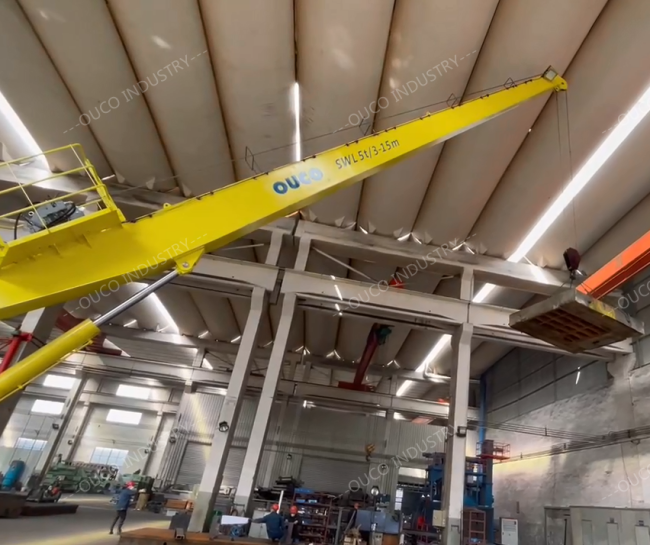

Product Picture
Our certification
Our factory
For more details, please feel free to contact us.
