1.5KW-100KW Wind Tracker Controller with Ground Fault Monitoring and LCD Touch Screen for Wind Energy Systems
Price:
Negotiable
MOQ:
1Set
Delivery Time:
25 working days
Brand:
Greef
Product Description
1.5KW-100KW Ground Fault Monitoring Wind Tracker Controller For Humidity Sensitive Applications
Product Introduction
The GREEF PCTC series WIND TRACKER CONTROLLER (1KW-100KW) is an intelligent core component specially designed for modern wind energy systems. It is compatible with mainstream photovoltaic inverters on the market, while solving the cost and certification challenges of small wind turbine grid-connected inverters. It also integrates advanced monitoring, protection and remote management functions.
Through precise speed-power curve control, we ensure high efficiency and stability in wind power generation. Meanwhile, innovative noise control technology enables harmonious coexistence with the surrounding environment.
Product Parameters
| Type | PCTC-1.5KW | PCTC-2KW | PCTC-3KW | PCTC-5KW |
|---|---|---|---|---|
| Wind turbine rated power | 1.5KW | 2KW | 3KW | 5KW |
| Wind turbine rated voltage | AC220V-240V | AC220V-240V | AC220V-380V | AC380-450V |
| Function | Rectifier, Control, DC output | |||
| Automatic protection function | Over voltage protection, Grid cut off protection, Regulated supply output, Arrester | |||
| Manual function | Manual brake, Reset, Emergency switch | |||
| Display mode | LCD Touch Screen | |||
| Display content (larger one) | Generator speed(rpm), Input voltage (Vdc), Input current(Vac), Output power(kW), Grid voltage (Vac), Grid current(A), Power generate today(kWh), Power generate this month, Power generate last month, Power generate this year, Power generate last year, Power Curve setting. | |||
| 3-phase dump load time-lapse | 12-20 min | 12-20 min | 12-20 min | 12-20 min |
| Wind turbine 3-phase dump load voltage | 450±5Vdc | 750±5Vdc | 750±5Vdc | 750±5Vdc |
| PWM constant voltage | ≥400dc | ≥700dc | ≥700dc | ≥700dc |
| Environment temperature | -30-60°C | |||
| Relative humidity | ＜90% No condensation | |||
| Noise (1m) | ＜40dB | |||
| Degree of protection | IP20(Indoor) IP65 (Outdoors) | |||
| Cooling method | Forced air cooling | |||
| Communication interface (optional) | RS485/USB/GPRS/WIFI/Ethernet | |||
| Type | PCTC-10KW | PCTC-20KW | PCTC-30KW | PCTC-50KW | PCTC-80KW | PCTC-100KW |
|---|---|---|---|---|---|---|
| Wind turbine rated power | 10KW | 20KW | 30KW | 50KW | 80KW | 100KW |
| Wind turbine rated voltage | AC380-520V | AC450-600V | ||||
| Automatic protection function | Over voltage protection, Grid cut off protection, Regulated supply output, Arrester | |||||
| Manual function | Manual brake, Reset, Emergency switch | |||||
| Display mode | LCD Touch Screen | |||||
| Display content (larger one) | Generator speed(rpm), Input voltage (Vdc), Input current(Vac), Output power(kW), Grid voltage (Vac), Grid current(A), Power generate today(kWh), Power generate this month, Power generate last month, Power generate this year, Power generate last year, Power Curve setting. | |||||
| PWM constant voltage | ≥700dc | |||||
| Wind turbine 3-phase dump load voltage | 750±5Vdc | |||||
| Wind turbine 3-phase dump load time-lapse | 12-20 min | |||||
| Environment temperature | -30-60°C | |||||
| Relative humidity | ＜90% No condensation | |||||
| Noise (1m) | ＜40dB | |||||
| Degree of protection | IP20(Indoor) IP65 (Outdoors) | |||||
| Cooling method | Forced air cooling | |||||
| Communication interface (optional) | RS485/USB/GPRS/WIFI/Ethernet | |||||

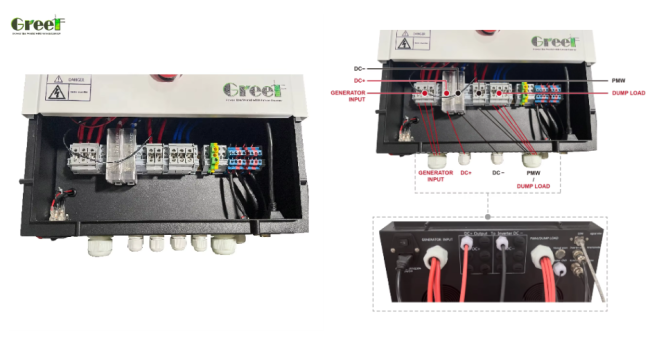

Product Details
System Solution
Greef has a professional team to create a tailor-made system for customers, this picture is an example. If you have other requirements, please contact us!
Product Packaging
Why Choose Us
- Advanced monitoring and protection systems
- Compatible with mainstream photovoltaic inverters
- Precise speed-power curve control for optimal efficiency
- Innovative noise control technology
- Comprehensive remote management capabilities
- Professional custom system solutions
