GC60 Plate For Heat Exchanger SS304 SS306 Ti Ni Corrosion Resistant


GC60 Basic information of PHE plate

Each plate contains two parts
Metal plate:It is an important heat transfer element for pressing metal sheet with corrugation, sealing groove and corner hole.

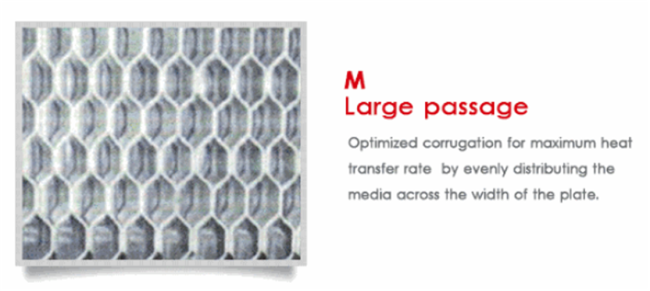

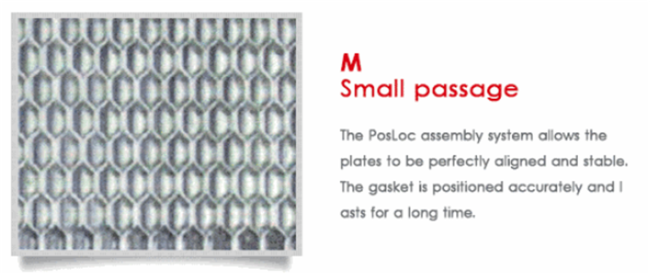

Corrugated not only can strengthen heat transfer, and can increase the sheet and rigid, so as to improve the bearing capacity of the plate heat exchanger, and because turbulence prompted the liquid state, so it can reduce the formation of sediment or dirt, play a role in "self-cleaning".
Sealing gasket: installed in the slots along the perimeter of the plate of the gasket and seal plate between the peripheral, prevent fluid leak outward, and according to the requirements of design, the sealing part of the Angle of hole, the cold and hot liquids according to their respective port flow.

GC60 Parameters


Sealing principle

The corrugated plate is pasted with sealing gasket, which is designed to double seal structure and has signal hole.When the medium leaks from the first seal, it can leak out from the signal hole, and the problem can be detected and solved as soon as possible, without causing the mixing of the two media.Sealing gasket according to different media and operating temperature to choose different types of rubber.
Brand Name: M&C
Material: Stainless Steel 316L, Stainless Steel 304, Titanium
Advantage: Produce plastic deformation and have certain strength
Dimension: 1415*496mm
Center of hole distance: 1238*310mm
Corrugation deep: 3mm

Feature


1. Advanced plate design to improve heat transfer efficiency.
2. Uniform distribution of fluid, accurate positioning.
3. Common types of plate heat exchanger plates at home and abroad.
4. Reasonable shunt area, enhance corrosion resistance, improve the utilization rate of heat exchange area.
5. The reverse flow of the two fluids greatly improves the heat exchange efficiency.
6. Parallel piping of the same fluid inlet and outlet simplifies engineering installation.
7. Single plate, simplified maintenance.





Application area


Application:HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining, Chemical, Refrigeration


After-sales service

1, M&C has experienced emergency repair team which enables us to provide on-time maintenances.

2, Within warranty period,M&C will provide free maintenance for any break up due to importer wrong operation or natural damage.Materials and parts for maintenance are charged only with lowest cost.

3, We will trace the operation of our product and record the feedback from our customs.

4, Adhere to the principle of “Customer Supreme, Quality First”,our technicians learn the maintainance training regularly. We supply free technical support and service in order to make our customers satisfied.

Package:standard export carton, plywood case
