Through Hole Conductive Power Slip Ring Assembly 300 Rpm With Rotary Electric Power Joint
Cost Effective Through Hole Conductive Slip Ring with Rotary Electric Power Joint
ECN012-03P5 Through hole electric slip rings are currently the most cost-effective and best-selling series of industrial slip rings. Most of them used in situations where 360-degree continuous rotation requires guaranteed power and uninterrupted signals. It’s often named rotary power connector, an electrical rotary joint or a circuit rotary connector. Widely apply to the ship mounted satellite wires, window cleaning machine equipment, rotating stage and the latest VR simulation equipment, etc. For more information about how CENO slip ring can fit your application, please contact us.
Features
- Standardized slip ring, in store
- Precious Metal contact materials
- Can be integrated various data as different applications
- Install easily & transmit stably
Applications
- VR simulation equipment
- Rotating stage
- Window cleaning machine
- Filling machinery
- Medical equipment
Optional
- Circuit, Voltage, Current
- Contact / Housing Materials
- Sealing forms
- Protection Grade
- Working speed
Specification
|
ECN012-03P5 |
Specification |
| Current & Circuits |
3 circuits * 30A |
| Rating Voltage | 0~220 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistance | ≤30mΩ (50rpm) |
| Working Temperature | -20°C~+60°C |
| Working humidity | 60%RH |
| IP protection grade | IP51 |
| Operating speed | 0~300 rpm |
| Contact material | Precious Metal |
| Housing material | Aluminum Alloy |
| Lead wire size | AWG14# Tin coated Teflon® UL |
| Lead wire length | Rotor: 1000mm; Stator: 1000mm |
| Inner Diameter | Ø12.7mm |
| Installation Way | Stator side fixed on main shaft with screws |

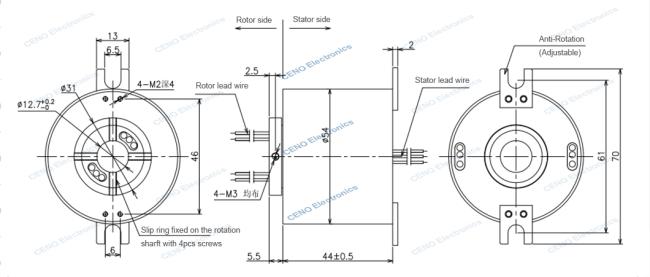

Outline Drawing
More information about the through hole slip ring
Introducing CENO Standard Through Hole Slip Ring Which is designed for efficient transmission of electric power from stator side to rotor side. With 6 circuits for a maximum of 10A, this slip ring is a reliable choice for your power transmission needs. Our slip ring boasts precious metal contact material, ensuring durability and longevity, even with frequent use.
Operating temperature is -20°C~+60°C, allowing for seamless operation in a variety of environments. Operating speed ranges from 0~ 150 rpm, allowing for optimal performance in your application. Our slip ring has an inner diameter of Ø70mm, with optional parameters to fit your specific requirements.
Efficient, reliable and customizable, our Standard Through Hole Slip Ring is the perfect solution for your power transmission needs. Contact us today and let our experienced team help you find the right solution for your application.
