AAC Aluminium Conductor Midge 7/2.06

Price Negotiable

Price: Negotiable

MOQ: 3000kgs

Delivery Time: 15-30 days

Brand: Zhenglan Cable

Product Description

AAC Aluminium Conductor Suitable For Low & Medium Voltage ASTM B399 Standard

Standard:

Basic design to BS 215-1 / BS EN 50182 / IEC 61089 / ASTM B 231/B 231M / DIN 48201-5 standards

Application

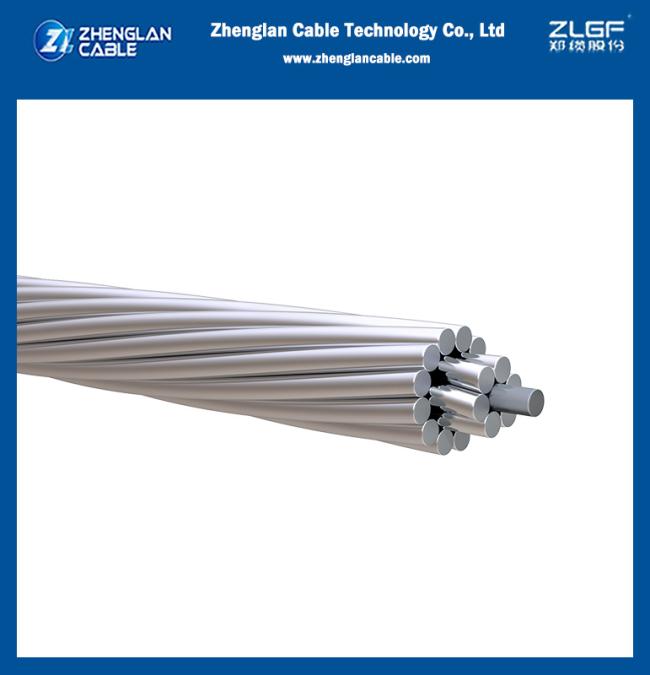

AAC - All Aluminium Conductor

AAC aerial conductor is made of aluminium 1350. It is designed for short & medium spans with a high conductivity.

Note

Coefficient of linear expansion 23.0 s 10-6/°C.
Modulus of elasticity:
a. 65 GPa for seven (7) and nineteen (19) wire conductors.
b. 64 GPa for thirtyseven (37) wire conductors.

Current ratings are based in an ambient temperature of 30°C, a maximum conductor temperature of 75°C, rural weathered, summer noon and intensity of solar radiation 1000 W/m².

Code	Nominal Area		Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Code	Nominal	Teorical	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
	mm^2	mm^2	No.×mm	mm	kg/km	KN	Ω/Km	A
Midge	22	23.33	7/2.06	6.18	64	3.99	1.227	106

Why you choose us?

OEM/ODM services provided;
Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
Registered capital of $30 million and factory covers an area of 60,000㎡;
Advanced test equipment and procedures, 100% inspection before factory;
Enough stocks and the higest efficient shipping time guarranteed;
Professional pre-sales and after-sales services provided.
