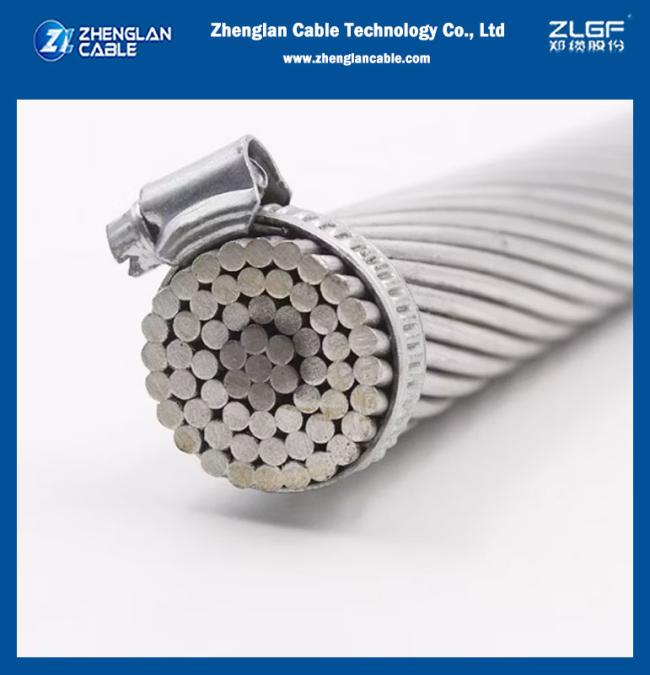

Cable ACSR Overhead Bare Aluminum Conductor Steel Reinforced Conductor BS 215
Cable ACSR Overhead Bare Aluminum Conductor Steel Reinforced Conductor BS 215
SPECIFICATIONS
ACSR bare conductor meets or exceeds the following ASTM specifications:
• B230 Aluminum 1350-H19 Wire for Electrical Purposes.
• B232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR).
• B498 Zinc-Coated (Galvanized) Steel Core Wire for Use in Overhead Electrical Conductors.
• B500 Metallic Coated Stranded Steel Core for Use in Overhead Electrical Conductors.

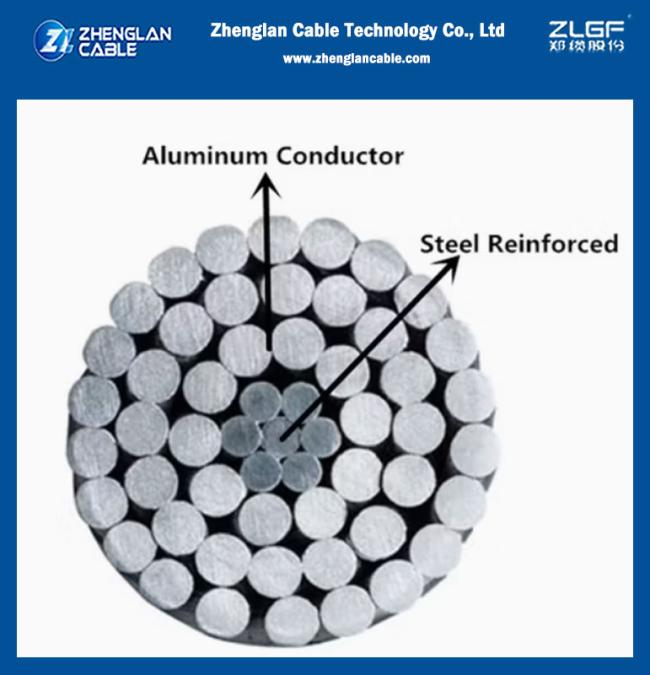

CONSTRUCTION
• Aluminum 1350-H19 wires, concentrically stranded about a steel core. Standard core wire for ACSR is class A galvanized.
• Class A core stranding is also available in zinc-5% aluminum-mischmetal alloy coating.
• For aluminum-clad (AW) ACSR, please refer to the ACSR/AW catalog sheet
• Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.
• ACSR conductor is also available in non-specular.
Bare Conductors for Power Transmission
BS215-2/BS EN50182 ASTM-B232/B232M AS3607 IEC61089DIN 48204 NF G34-120 UNE21018
Parameter
| Standards:BS 215 | |||||||
| Code name | Nominal aluminum area mm^2 | Stranding structure | Total sectional area mm^2 | Overall diameter mm | |||
| Al. No | Al. Dia. | St. No. | St. Dia | ||||
| Mole | 10 | 6 | 1.5 | 1 | 1.5 | 12.39 | 4.5 |
| Squirrel | 20 | 6 | 2.11 | 1 | 2.11 | 24.43 | 6.33 |
| Gopher | 25 | 6 | 2.36 | 1 | 2.36 | 30.62 | 7.08 |
| Weasek | 30 | 6 | 2.59 | 1 | 2.59 | 36.88 | 7.77 |
| Fox | 35 | 6 | 2.79 | 1 | 2.79 | 42.77 | 8.37 |
| Ferret | 40 | 6 | 3 | 1 | 3 | 49.48 | 9 |
| Rabbit | 50 | 6 | 3.35 | 1 | 3.35 | 61.7 | 10.05 |
| Mink | 60 | 6 | 3.66 | 1 | 3.66 | 73.71 | 10.98 |
| Skunk | 60 | 12 | 2.59 | 7 | 2.59 | 100.3 | 12.95 |
| Beaver | 70 | 6 | 3.99 | 1 | 3.99 | 87.29 | 11.97 |
| Horse | 70 | 12 | 2.79 | 7 | 2.79 | 116.2 | 13.95 |
| Racoon | 75 | 6 | 4.1 | 1 | 4.1 | 92.4 | 12.3 |
| Otter | 80 | 6 | 4.22 | 1 | 4.22 | 97.86 | 13.98 |
| Cat | 90 | 6 | 4.5 | 1 | 4.5 | 11.3 | 15.9 |
| Hare | 100 | 6 | 4.72 | 1 | 4.72 | 122.5 | 17.5 |
| Dog | 100 | 6 | 4.72 | 7 | 1.57 | 118.5 | 14.15 |
| Hyena | 100 | 7 | 4.39 | 7 | 1.93 | 126.2 | 14.57 |
| Leopard | 125 | 8 | 5.28 | 7 | 1.75 | 148.1 | 15.81 |
| Coyote | 125 | 26 | 2.54 | 7 | 1.91 | 152.2 | 15.89 |
| Congar | 125 | 18 | 3.05 | 1 | 3.05 | 137.5 | 15.25 |
| Tiger | 125 | 30 | 2.36 | 7 | 2.36 | 161.7 | 16.52 |
| Dingo | 150 | 18 | 3.35 | 1 | 3.35 | 167.5 | 16.75 |
| Wolf | 150 | 30 | 2.59 | 7 | 2.59 | 194.9 | 18.13 |
| Caracal | 174 | 18 | 3.61 | 1 | 3.61 | 194.5 | 18.05 |
| Lynx | 175 | 30 | 2.79 | 7 | 2.79 | 326.2 | 19.53 |
| Jaguar | 200 | 18 | 3.86 | 1 | 3.86 | 222.3 | 19.3 |
| Panther | 200 | 30 | 3 | 7 | 3 | 261.5 | 21 |
| Lion | 225 | 30 | 3.18 | 7 | 3.18 | 294.2 | 22.26 |
| Bear | 250 | 30 | 3.35 | 7 | 3.35 | 325.6 | 23.45 |
| Goat | 300 | 30 | 3.71 | 7 | 3.71 | 400 | 25.97 |
| Sheep | 350 | 30 | 3.99 | 7 | 3.99 | 461.4 | 27.93 |
| Antilope | 350 | 54 | 2.97 | 7 | 2.97 | 421.5 | 26.73 |
| Bizon | 350 | 54 | 3 | 7 | 3 | 431.3 | 27 |
| Deer | 400 | 30 | 4.27 | 7 | 4.27 | 529.5 | 28.89 |
| Zebra | 400 | 54 | 3.18 | 7 | 3.18 | 484.5 | 28.62 |
| ELK | 450 | 30 | 4.5 | 7 | 4.5 | 588.3 | 31.5 |
| Camel | 450 | 54 | 3.35 | 7 | 3.35 | 536.8 | 30.15 |
| Moose | 500 | 54 | 3.53 | 7 | 3.53 | 597.2 | 31.77 |
| Finch | 500 | 54 | 3.65 | 19 | 2.29 | 642.9 | 33.35 |
