MV Underground Power Cable NA2XSY NA2XS2Y NA2XS(F)2Y N2XSEY XLPE Insulation with PVC/PE Sheath Standard DIN VDE0276-620
Product Description:
Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.These cables are typically used for power distribution in underground installations, such as in urban areas, industrial sites, and power plants. They are suitable for direct burial in the ground or in ducts.

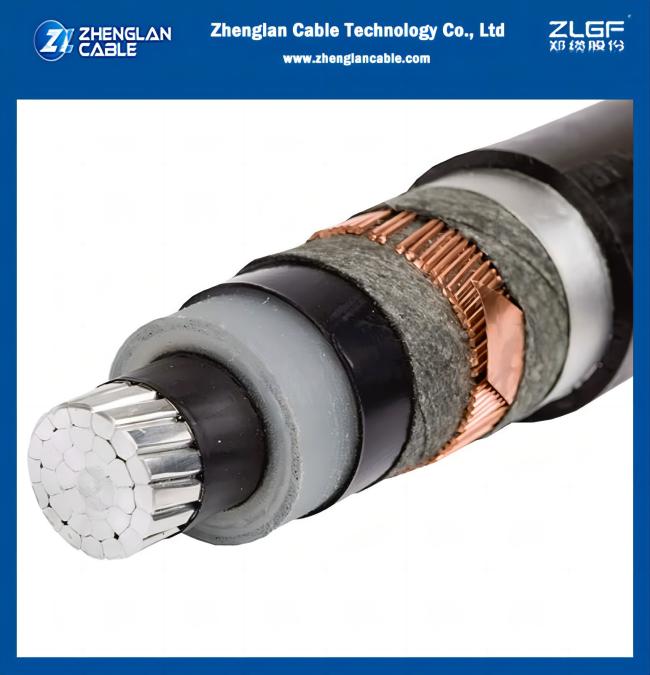

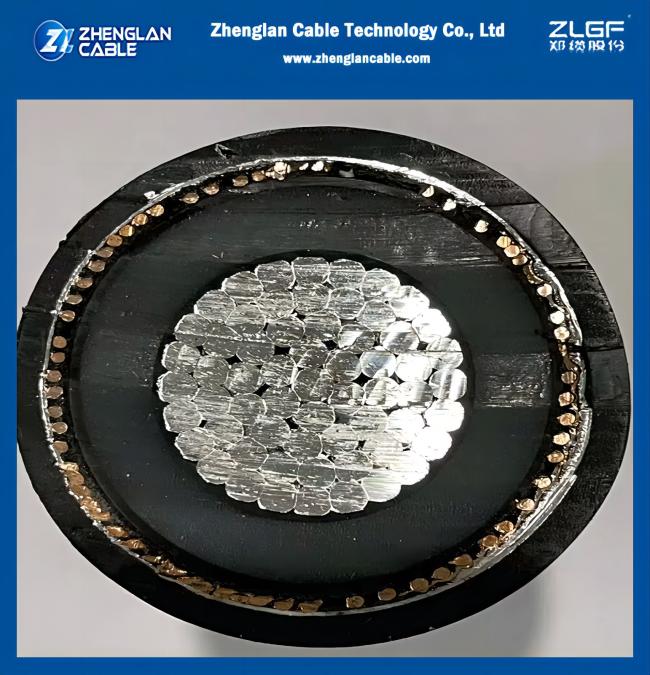

Cable Construction:
Circular bare copper conductor of stranded wires to HD 383Inner semi-conducting coating
Conductor insulation of cross-linked Polyethylene (XLPE), PE-compound DIX8 to HD 620.1
Outer extrusion of semi-conducting coating spliced with the insulation
Wrapping of conductive material
Shield: Braiding of copper wires with one or two tapes applied helically
Wrapping
PE-outer jacket black, compound DMP2 to HD 620.1
Jacket color: Black
Technical Parameters:
| Test voltage | 6 / 10 kV | [kV] | 21 / 5 min. |
| Temperature range | in motion | -5°C till +70°C | |
| fixed | -20°C till +70°C | ||
| Operating temperature | short circuit | °C | 250 |
| Short circuit time | max. | [sec] | 5 |
| Bending radius | min. | x diameter | 15 |
| Flammability | standard | EN 60332-1-2 |
| Description & No. Conductors x cross-sec. mm2, Nominal Voltage | Operation Voltage max. | Insul. Thick-ness mm | Jacket Thick-ness mm | Outer | Copper Weight | Alu weight kg/km | Weight ca. kg/km | AWG |
| Dia. min.-max. | kg/km | |||||||
| NA2XSY 6/10kV 1X50 rm/16 | 12 | 3.4 | 2.5 | 24.0 - 29.0 | 182 | 145 | 780 | 1 |
| NA2XSY 6/10kV 1X70 rm/16 | 12 | 3.4 | 2.5 | 26.0 - 31.0 | 182 | 203 | 875 | 2/0 |
| NA2XSY 6/10kV 1X95 rm/16 | 12 | 3.4 | 2.5 | 27.0 - 32.0 | 182 | 276 | 990 | 3/0 |
| NA2XSY 6/10kV 1X120 rm/16 | 12 | 3.4 | 2.5 | 29.0 - 34.0 | 182 | 348 | 1110 | 4/0 |
| NA2XSY 6/10kV 1X150 rm/16 | 12 | 3.4 | 2.5 | 30.0 - 35.0 | 182 | 435 | 1240 | 300 kcmil |
| NA2XSY 6/10kV 1X150 rm/25 | 12 | 3.4 | 2.5 | 30.0 - 35.0 | 283 | 435 | 1310 | 300 kcmil |
| NA2XSY 6/10kV 1X185 rm/25 | 12 | 3.4 | 2.5 | 32.0 - 37.0 | 283 | 537 | 1460 | 350 kcmil |
| NA2XSY 6/10kV 1X185 rm/16 | 12 | 3.4 | 2.5 | 32.0 - 37.0 | 182 | 537 | 1405 | 350 kcmil |
| NA2XSY 6/10kV 1X240 rm/25 | 12 | 3.4 | 2.5 | 34.0 - 39.0 | 283 | 696 | 1660 | 500 kcmil |
| NA2XSY 6/10kV 1X240 rm/16 | 12 | 3.4 | 2.5 | 34.0 - 39.0 | 182 | 696 | 1615 | 500 kcmil |
| NA2XSY 6/10kV 1X300 rm/25 | 12 | 3.4 | 2.5 | 36.0 - 41.0 | 283 | 870 | 1910 | 600 kcmil |
| NA2XSY 6/10kV 1X400 rm/35 | 12 | 3.4 | 2.5 | 40.0 - 45.0 | 394 | 1160 | 2315 | 750 kcmil |
| NA2XSY 6/10kV 1X500 rm/35 | 12 | 3.4 | 2.5 | 43.0 - 48.0 | 394 | 1450 | 2750 | 1000 kcmil |
Image:
Support and Services:
The Medium Voltage Power Cables product technical support and services include:
- Assistance with cable selection and specification
- Installation and commissioning support
- Troubleshooting and fault analysis
- Maintenance and repair services
- Consultancy services for system design and integration
Packing and Shipping:
Product Packaging:
- The medium voltage power cables will be packed in strong and sturdy wooden reels to ensure safe transportation.
- The reels will be wrapped with shrink wrap to protect the cables from dust, moisture, and other external factors.
- The cables will be labeled with all necessary information including product name, size, length, and quantity.
Shipping:
- Shipping will be arranged by our team and will be delivered by a reliable and trusted shipping carrier.
- The medium voltage power cables will be loaded onto a flatbed truck and secured properly to prevent any damage during transit.
- Customers will be provided with a tracking number to monitor the shipment and ensure on-time delivery.
About Zhenglan Cable Technology Co., Ltd
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
Why Choose Zhenglan Cable:
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
