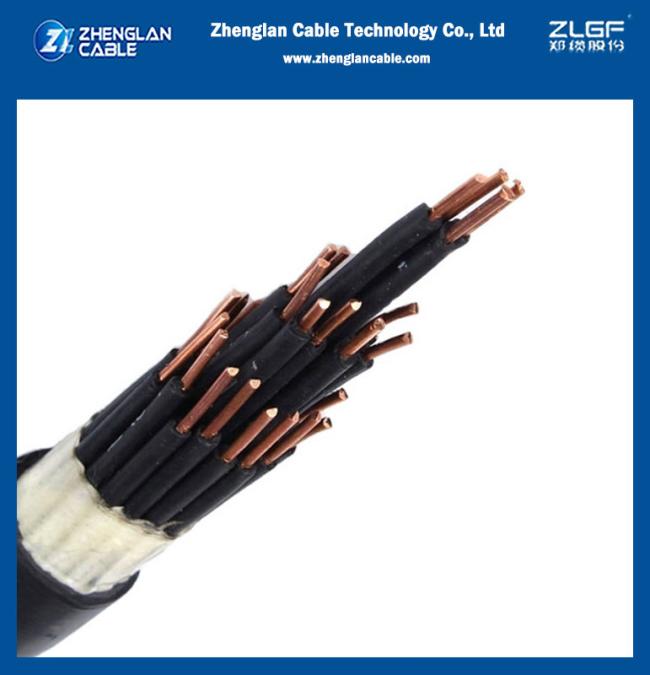

450/750 V ZC KVV Control Cable PVC Insulated Flame Regardant Unarmoured Copper Cables IEC 60227, IEC 60502, GB/T 9330
450/750 V ZC KVV Control Cable PVC Insulated Flame Regardant Unarmoured Copper Cables IEC 60227, IEC 60502, GB/T 9330
ZC KVV Control Cable Application
Control cable is primarily used in supervisory electrical equipment and station control circuits in light ordinary or heavy duty industry where power distribution device is needed to transmit control signals or measure signal operations.The main feature of the flame retardant cable is hard to get fire or that the continous burning of cables is very limited when it is on fire. It applies to the places with special demands for flame retardant property. Flame retardant cable is classified as Class A, B or C. Amongst the 3 class , Class A is the best in aspect of flame retardant.
ZC KVV Cable Standard
IEC 60227, IEC 60502, GB/T 9330, BS 6500
CONSTRUCTION :
| Model | Name | Main application |
| KVV | Copper conductor PVC insulated PVC sheathed control cable | For laying indoors, in trenches and in ducts, for fixed installation |
| KVVP | Copper conductor PVC insulated PVC sheathed copper braiding screened control cable | For laying indoors, in trenches and in dusts, for fixed installation |
| KVVP2 | Copper conductor PVC insulated and sheathed control cable with steel tape shield |
For laying indoors, in trenches and in dusts and in ground, able to withstand heavier mechanical force, for fixed installation |
| KVV22 | Copper conductor PVC insulated and sheathed control cable with steel tape armour |
For laying indoors, in trenches and in dusts and in ground, able to withstand heavier mechanical force, for fixed installation |
| KVVR | Copper conductor PVC insulated flexible control cable | For laying indoors, movable and flexible |
| ZR-KVVRP | Copper conductor PVC insulated PVC sheathed flame retardant flexible control cable with braided shield | Fixed laying indoors with capability of moving and screening |
| ZR-KVV | Copper conductor PVC insulated and sheathed flame retardant control cable |
For laying indoors, in trenches, in ducts and for fixed installation, the cable should be flame retardant |
| ZR-KVVP2 | Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape shield |
For laying indoors, in trenches, in ducts and for fixed installation, the cable should be flame retardant |
| ZR-KVV22 | Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape armour |
For laying indoors, in trenches, in ducts and underground, the cable should be flame-retardant and able to bear beavier external mechanical force, and for fixed installation |
| ZR-KVVR | Copper conductor PVC insulated and sheathed flame retardant flexible control cable | For laying indoors, and the cable should be flexible and movablea |
| STANDARD | IEC 60227, IEC 60502, GB/T 9330, BS 6500 |
| APPLICATION | Industral Use |
| CHEMICAL PERFORMANCE | Chemical & Oil resistance: Good |
| MECHANICAL PERFORMANCE | Minimum bending raduis: x15cable diameter |
| FIRE PERFORMANCE | Flame non-propagation base on IEC 60332-1 Reduced emission of Halogens chlorine<15% |
| TERMINAL PERFORMANCE | Maximum service temperature: 70°C Maximum short-circuit temperature: 160°C(max. 5s) Minimum service temperature: -15°C |

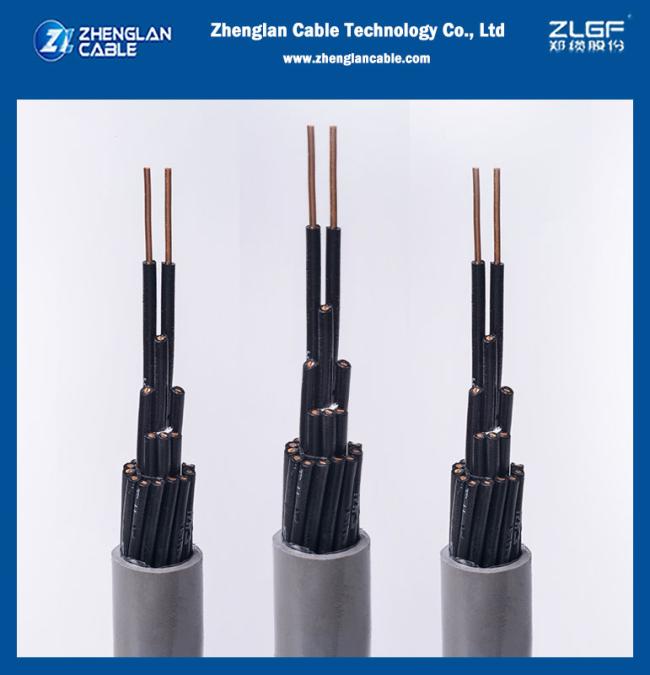

ZC KVV Control Cable CU/PVC/PVC
| Nominal Size |
Conductor Structure | Insulation Thickness | Sheath Thickness | Approx. Overall Dia. |
Approx. Weight | Nominal Size |
Conductor Structure | Insulation Thickness | Sheath Thickness | Approx. Overall Dia. |
Approx. Weight |
| mm2 | No./mm | mm | mm | mm | kg/km | mm2 | No./mm | mm | mm | mm | kg/km |
| 2×0.75 | 1/0.97 | 0.6 | 1.2 | 6.8 | 59 | 2×0.75 | 7/0.37 | 0.6 | 1.2 | 7.1 | 62 |
| 3×0.75 | 1/0.97 | 0.6 | 1.2 | 7.2 | 68 | 3×0.75 | 7/0.37 | 0.6 | 1.2 | 7.4 | 71 |
| 4×0.75 | 1/0.97 | 0.6 | 1.2 | 7.8 | 83 | 4×0.75 | 7/0.37 | 0.6 | 1.2 | 8.1 | 87 |
| 5×0.75 | 1/0.97 | 0.6 | 1.2 | 8.4 | 101 | 5×0.75 | 7/0.37 | 0.6 | 1.2 | 8.8 | 106 |
| 6×0.75 | 1/0.97 | 0.6 | 1.2 | 9.0 | 118 | 6×0.75 | 7/0.37 | 0.6 | 1.2 | 9.4 | 123 |
| 7×0.75 | 1/0.97 | 0.6 | 1.2 | 9.0 | 123 | 7×0.75 | 7/0.37 | 0.6 | 1.2 | 9.4 | 129 |
| 8x0.75 | 1/0.97 | 0.6 | 1.2 | 9.7 | 138 | 8x0.75 | 7/0.37 | 0.6 | 1.2 | 10.1 | 144 |
| 10x0.75 | 1/0.97 | 0.6 | 1.2 | 11.2 | 174 | 10x0.75 | 7/0.37 | 0.6 | 1.2 | 11.7 | 182 |
| 12x0.75 | 1/0.97 | 0.6 | 1.5 | 12.1 | 210 | 12x0.75 | 7/0.37 | 0.6 | 1.5 | 12.7 | 219 |
| 14x0.75 | 1/0.97 | 0.6 | 1.5 | 12.7 | 236 | 14x0.75 | 7/0.37 | 0.6 | 1.5 | 13.3 | 247 |
| 16x0.75 | 1/0.97 | 0.6 | 1.5 | 13.3 | 266 | 16x0.75 | 7/0.37 | 0.6 | 1.5 | 13.9 | 277 |
| 19x0.75 | 1/0.97 | 0.6 | 1.5 | 14.0 | 301 | 19x0.75 | 7/0.37 | 0.6 | 1.5 | 14.6 | 314 |
| 24x0.75 | 1/0.97 | 0.6 | 1.5 | 16.1 | 376 | 24x0.75 | 7/0.37 | 0.6 | 1.5 | 16.9 | 393 |
| 27x0.75 | 1/0.97 | 0.6 | 1.5 | 16.4 | 407 | 27x0.75 | 7/0.37 | 0.6 | 1.5 | 17.3 | 426 |
| 30x0.75 | 1/0.97 | 0.6 | 1.5 | 17.1 | 446 | 30x0.75 | 7/0.37 | 0.6 | 1.5 | 17.9 | 466 |
| 37x0.75 | 1/0.97 | 0.6 | 1.7 | 18.7 | 549 | 37x0.75 | 7/0.37 | 0.6 | 1.7 | 19.6 | 574 |
| 44x0.75 | 1/0.97 | 0.6 | 1.7 | 20.9 | 649 | 44x0.75 | 7/0.37 | 0.6 | 1.7 | 21.9 | 679 |
| 48x0.75 | 1/0.97 | 0.6 | 1.7 | 21.2 | 692 | 48x0.75 | 7/0.37 | 0.6 | 1.7 | 22.3 | 722 |
| 52x0.75 | 1/0.97 | 0.6 | 1.7 | 21.7 | 737 | 52x0.75 | 7/0.37 | 0.6 | 1.7 | 22.8 | 770 |
| 61x0.75 | 1/0.97 | 0.6 | 1.7 | 23.1 | 852 | 61x0.75 | 7/0.37 | 0.6 | 1.7 | 24.3 | 889 |
