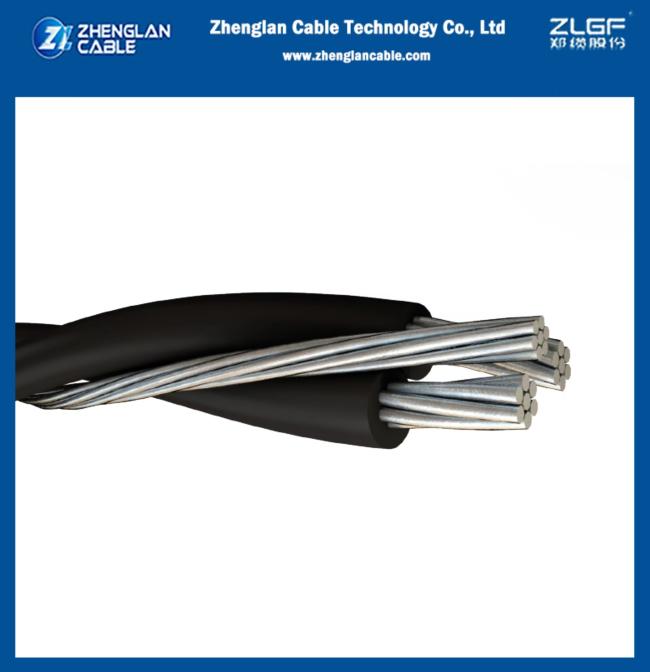

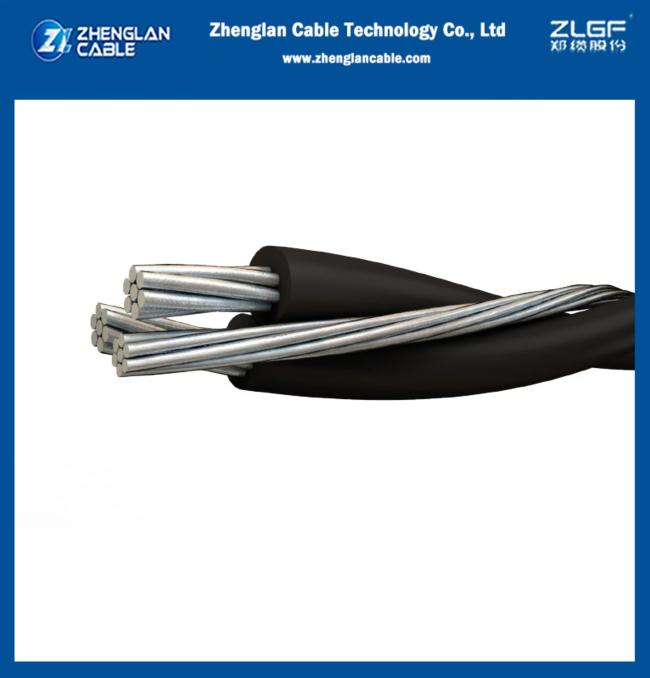

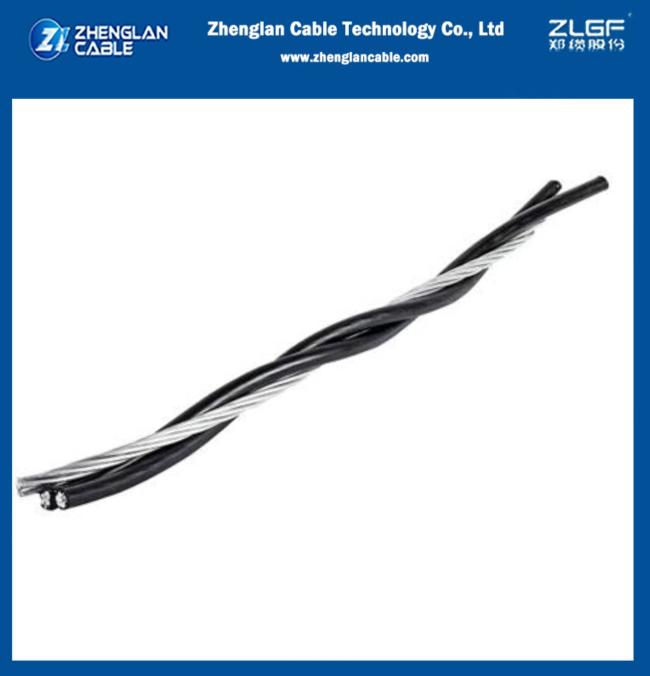

Overhead Insulated Cable ABC Triplex Type Aluminum Conductors 0.6/1KV 4AWG AAAC/XLPE NFC33-209
APPLICATIONS
Triplex-type aluminum conductors are used for electrical connections supported by a bare neutral messenger from the secondary public network that passes through the sector to the meter or meter panel, in public lighting circuits and as a closed-type secondary network. This type of conductor can be used in dry and humid places, its maximum operating temperature is 75 °C or 90 °C (depending on the insulation used) and the service voltage is 0.3 kV for phase-neutral and 0.6 kV for phase-phase.
| Code Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000 ft. (lbs.) | Allowable Ampacities+ | ||||||
| Size (AWG) | Stranding | Covering Thickness (mils.) | ACSR Equivalent (AWG) | Stranding | Rated Strength (lbs.) | POLY | XLP | POLY | XLP | |
| Minex | 6 | 1 | 45 | 6 | 7 | 1110 | 101 | 102 | 70 | 85 |
| Hippa | 6 | 7 | 45 | 6 | 7 | 1110 | 105 | 107 | 70 | 85 |
| Artemia | 4 | 1 | 45 | 6 | 7 | 1110 | 132 | 134 | 90 | 115 |
| Prawn | 4 | 1 | 45 | 4 | 7 | 1760 | 152 | 154 | 90 | 115 |
| Crab | 4 | 7 | 45 | 6 | 7 | 1110 | 141 | 144 | 90 | 115 |
| Barnacle | 4 | 7 | 45 | 4 | 7 | 1760 | 157 | 160 | 90 | 115 |
| Solaster | 2 | 7 | 45 | 4 | 7 | 1760 | 212 | 216 | 120 | 150 |
About us
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
We, Zhenglan Cable Technology Co., Ltd main products are
overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
1-35kv overhead transmission line use insulated conductor
power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
300/300V, 300/500V, 450/750V cotrol cable, house wire
We promise you real quality, competitive price, on-time delivery, one-year guarantee.
