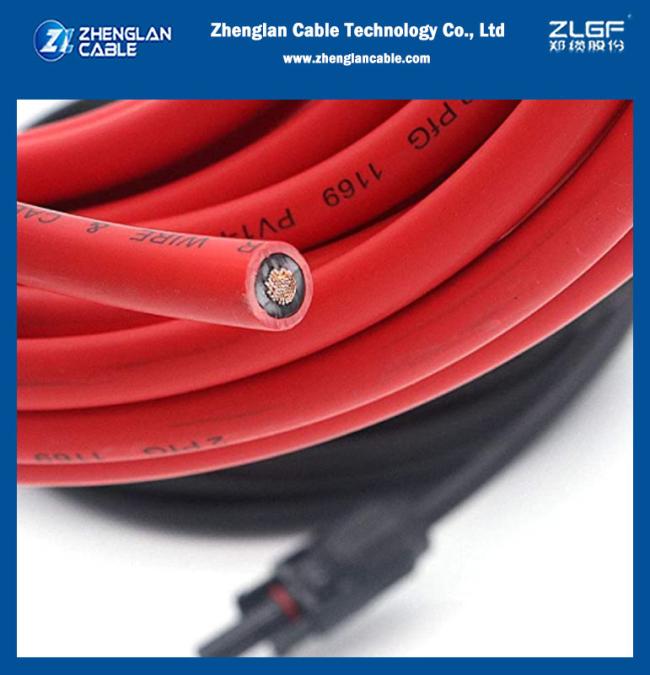

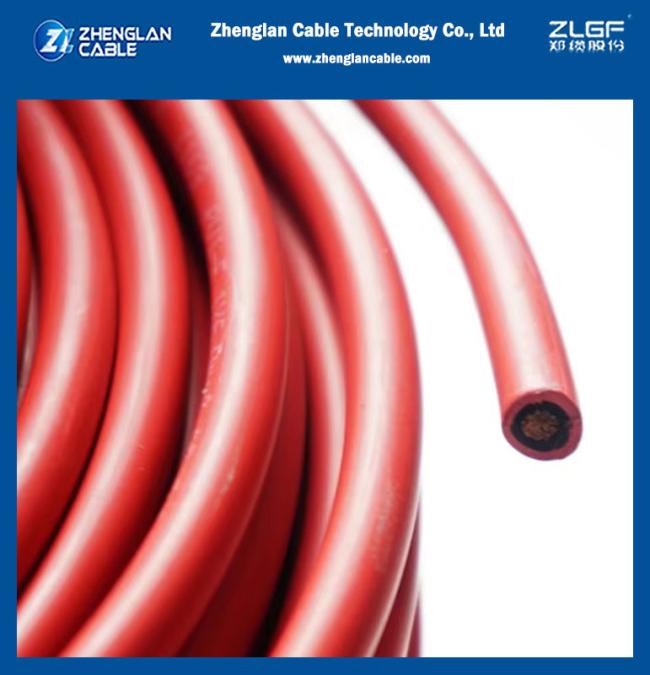

0.6 / 1.0 KV XLPO/XLPE Insulation 4mm Solar Cable Pv Wire Adapted To PV Systems EN 50618

Name: 0.6 / 1.0 KV XLPO/XLPE Insulation 4mm Solar Cable Pv Wire Adapted To PV Systems EN 50618
Brand: Zhenglan Cable Technology Co., Ltd

Price Negotiable

Price: 0.1-80USD/M

MOQ: 5000meters

Delivery Time: 7-15DAY

Brand: Zhenglan Cable

Product Description

0.6 / 1.0 kV XLPO/XLPE insulation 4mm Solar Cable Pv Wire Adapted to PV systems EN 50618

Application:: Solar cable is the interconnection cable used in photovoltaic power generation. Solar cable is UV resistant and weather resistant. Therefore, Solar cable can be used within a large temperature range. Above all, Zhenglan cables are 99.98% pure copper ensure enhanced conductivity. Better reliability, energy efficiency & highest level of safety. Insulated with in house formulated & manufactured PVC compound. Excellent Fire & Heat retardant characteristics at different working condition. Maximum energy saving ensures value for money.

Standard:: Adapted to PV systems, 2 Pfg 1169 / 08.2007 and EN 50618:2015.
Electrical Parameters:: Voltage Rating : AC 0.6 / 1.0 kV Max. PV - System Voltage : DC up to 2.0 kV possible Max. Permissible Operating Voltage in AC Systems : 0.7 / 1.2 kV Max. Permissible Operating Voltage in DC Systems : 0.9 / 1.8 kV Test Voltage : AC 6 kV / DC 10 kV (15 min.)
Cable Construction:: Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.; Insulation : UV resistant, cross linkable, halogen free, flame retardant compound for core insulation.; Core Identification : Red, black or natural Sheath : UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation.; Cable Colour : Black or Red
Solar Cable 4mm Advantage:: Solar Cable 6mm modules operate at high temperatures and are exposed to a variety of environmental conditions.; The NEC limits various PV array applications to USE-2 or PV wire. These cables need to meet the required sunlight resistance and temperature ratings for the environment.; Solar Cable 4mm is manufactured for use in photovoltaic applications, while USE-2 cable types are typically manufactured for underground service entrance applications.; Both cable types commonly contain XLPO insulation and can be sunlight resistant and/or rated for direct burial.

Solar Cable 4mm Parameter

Construction	Conductor Construction	Conductor	Outer	Resistance Max	Current Carring Capacity
n×mm2	n×mm	mm	mm	Ω/Km	A
1×1.5	30×0.25	1.58	4.90	13.3	30
1×2.5	50×0.256	2.06	5.45	7.98	41
1×4.0	56×0.3	2.58	6.15	4.75	55
1×6	84×0.3	3.15	7.15	3.39	70
1×10	142×0.3	4.0	9.05	1.95	98
1×16	228×0.3	5.7	10.2	1.24	132
1×25	361×0.3	6.8	12.0	0.795	176
1×35	494×0.3	8.8	13.8	0.565	218
1×50	418×0.39	10.0	16.0	0.393	280
1×70	589×0.39	11.8	18.4	0.277	350
1×95	798×0.39	13.8	21.3	0.210	410
1×120	1007×0.39	15.6	21.6	0.164	480
