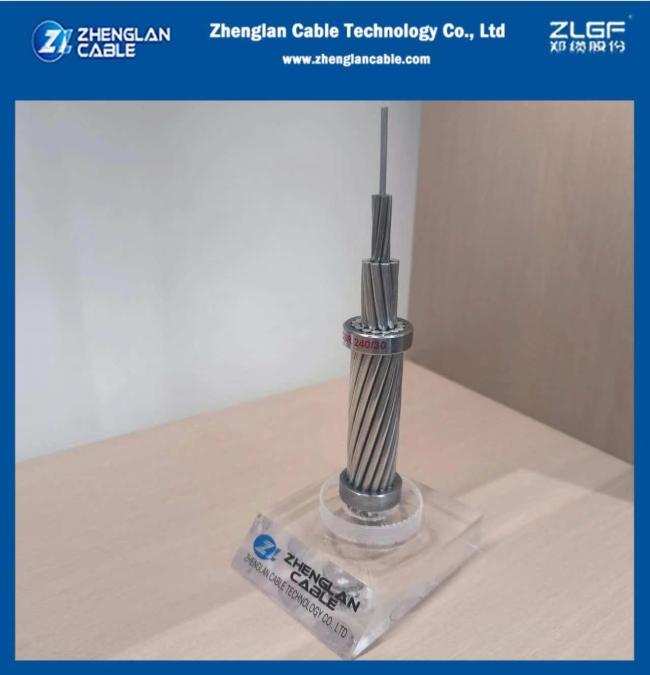

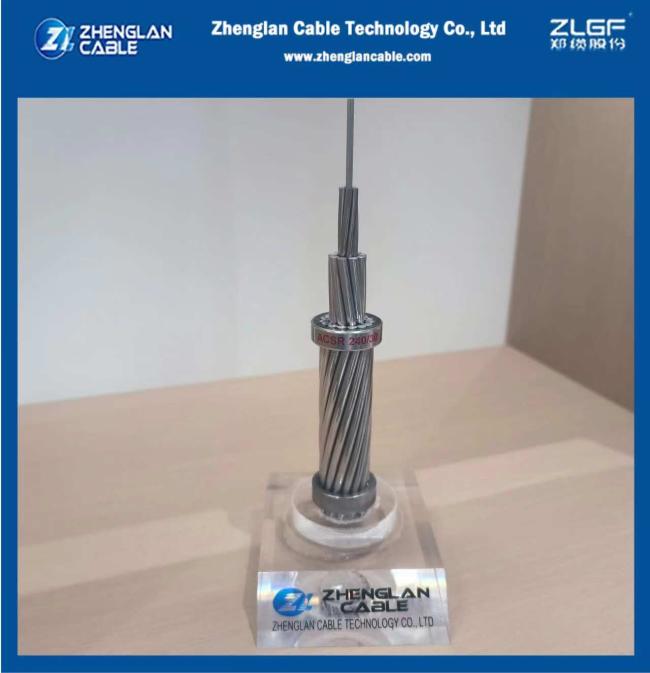

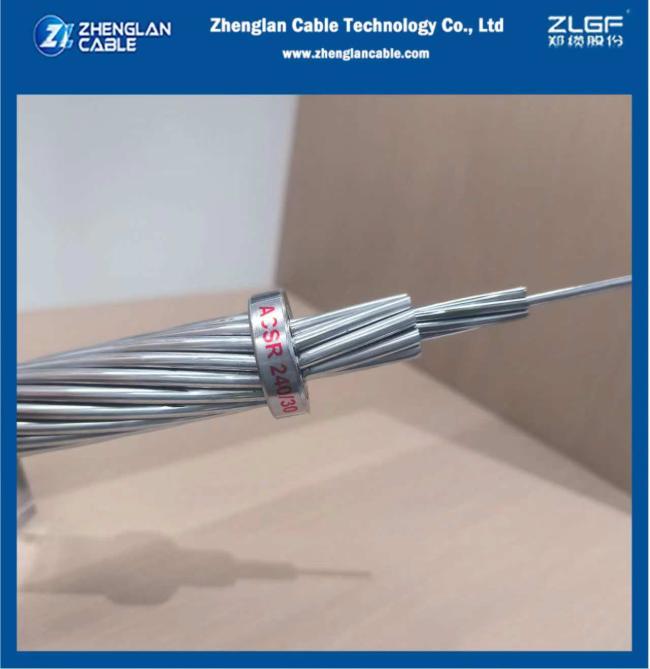

ACSR 240/30 Overhead Aluminum Conductor Seel Reinforced AL 24/3.60 ST 7/2.40 GB/T1179--2017
Price:
Negotiable
MOQ:
5000meters
Delivery Time:
15-30 days
Brand:
Zhenglan Cable
Product Description
Construction
Aluminum Conductors, Steel-Reinforced (ACSR) is a concentric-lay-stranded conductor consisting of galvanized steel central core with one or more layers of hard drawn stranded aluminum wires laid helically over the steel core. Steel core wires are protected from corrosion by galvanization.
Additional corrosion protection is available through the application of grease.
| Nominal Cross-section(AL/ST) | Aluminum | Galvanized steel | Approx.Overall diameter | Approx.Overall weight | Maximum DC resistance at 20oC | Minimum breaking load | Current carrying Capacity(*) |
| mm2 | No. x mm | No. x mm | mm | kg/km | Ω/km | kN | A |
| 240/30 | 24 x 3.60 | 7 x 2.40 | 21.60 | 920 | 0.118 | 75.19 | 661 |
Why you choose us?
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
